ODI-2CH-RF

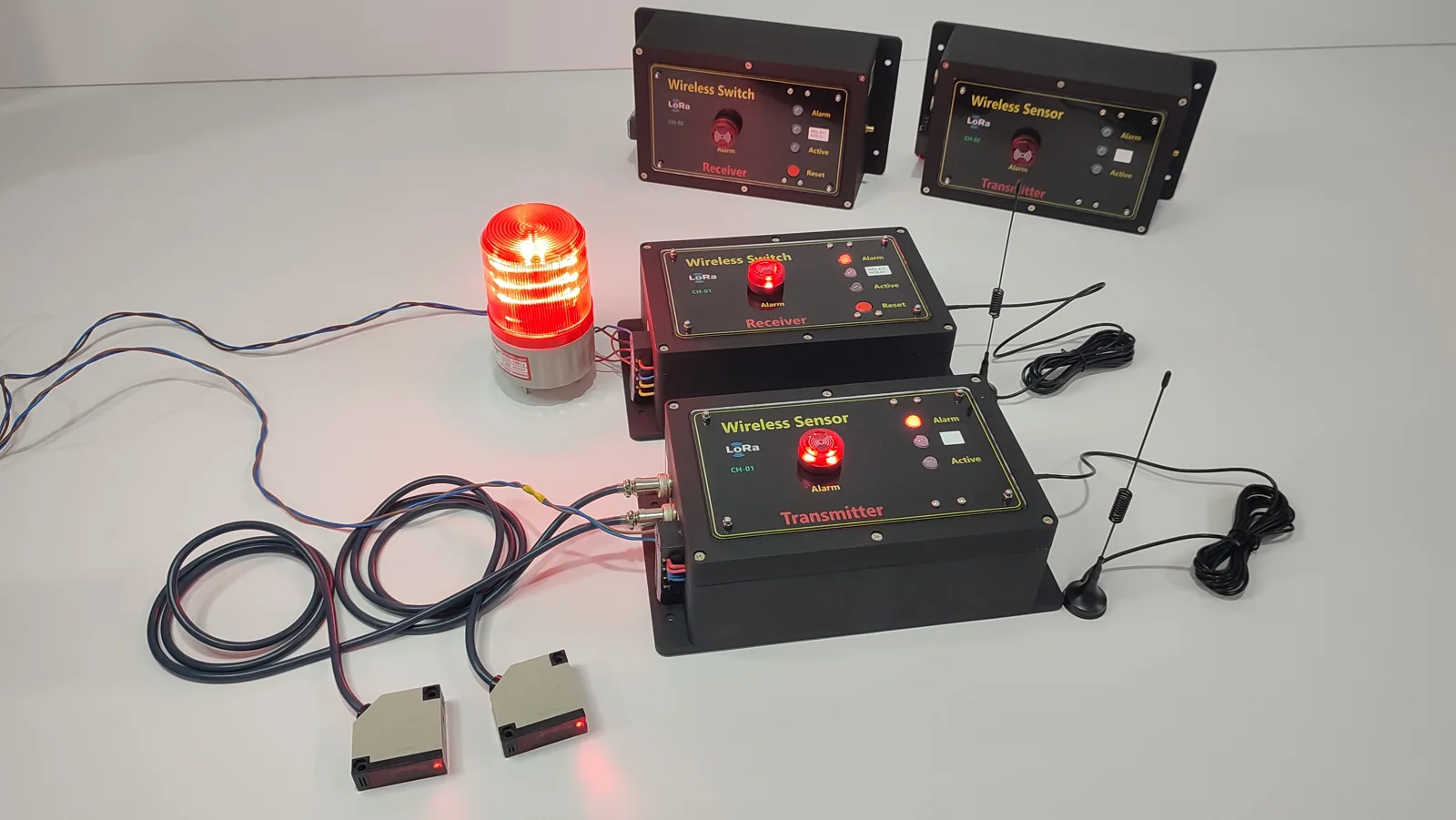

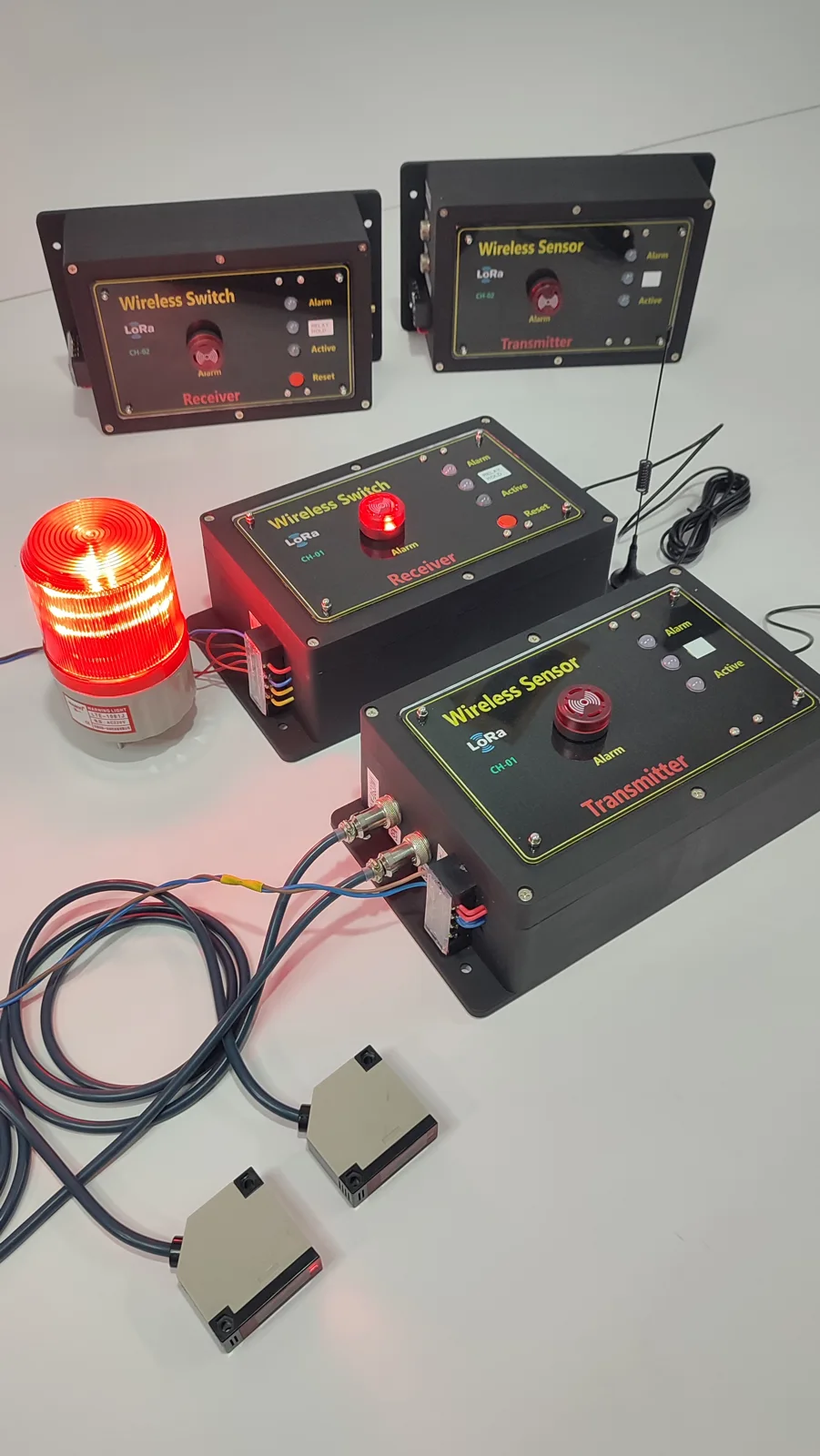

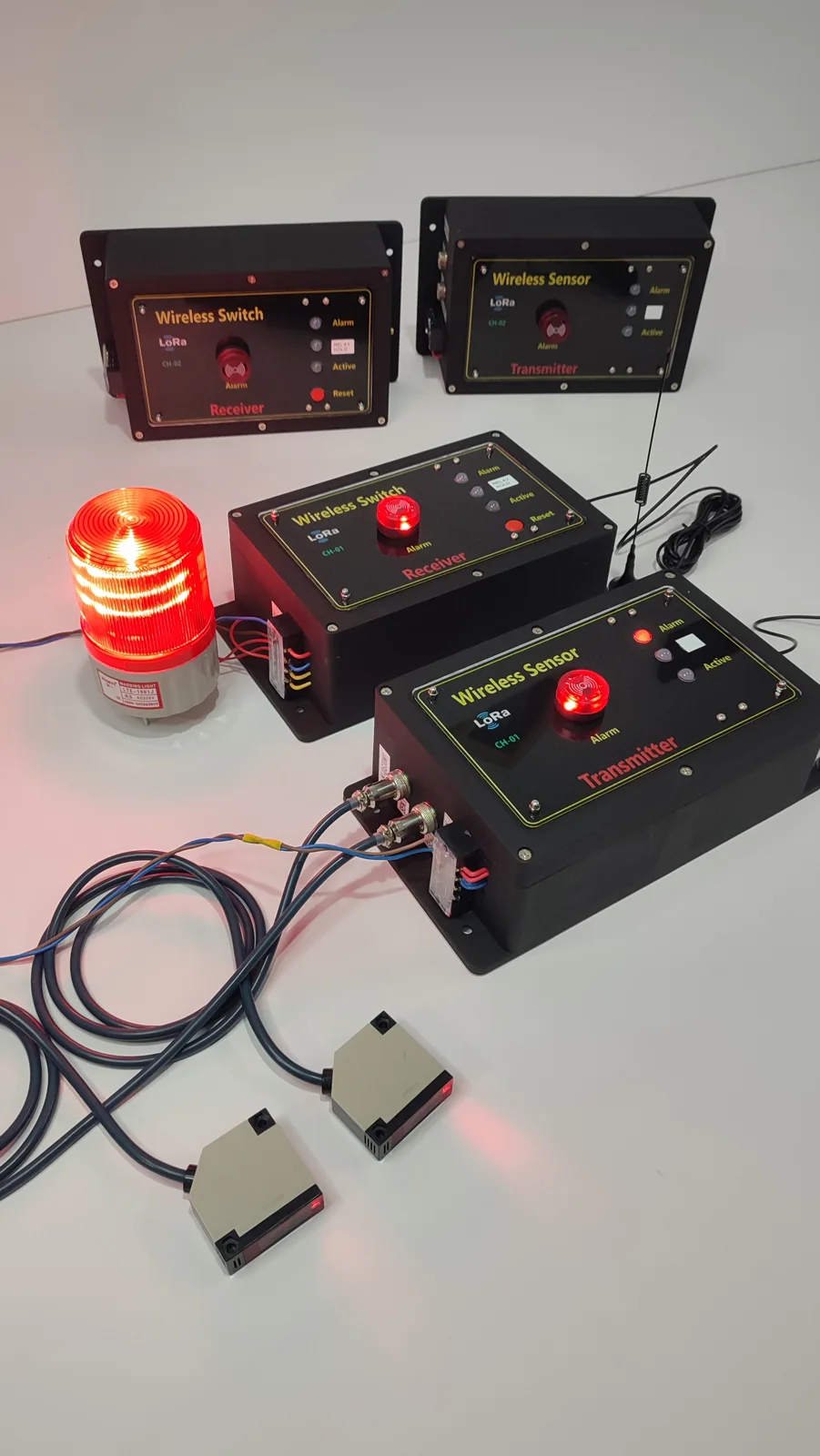

A wireless obstacle-detection and PLC interlock system for rail-mounted moving machinery. Two forward-facing sensors monitor the travel path, while separate obstacle and link-status relays provide alarm and movement-permission signals to the PLC.
Request a product quotation ↗Confirm quantity, colour and application for a formal quotation.
| Standard Sensors | 2 × E3JK-DS30M1 photoelectric sensors |
|---|---|
| Link Output | Normally open dry contact; closed only while the wireless link is healthy |
| Sensing Range | Up to 0.3 m with supplied sensors |
| Link-Loss Response | Immediate relay release to inhibit PLC movement |
| Rf Communication | 100 mW LoRa RF with receipt confirmation |
| Status Indication | Power, wireless link and alarm indicators |
| Obstacle Output | Normally open dry contact; remains latched until reset |
| Alarm Indication | Loud audible alarm with rotating warning lamp |
ODI-2CH-RF
Specify the required colour and configuration when requesting a quotation. Weight is not provided in the catalogue where omitted above.
Obstacle detection and PLC interlock signalling for rail-mounted moving machinery.
SGCTX_V1
A desktop scrap-grading controller that maintains 12 daily and 12 cumulative counters. Operators manage all functions using a wireless QWERTY keyboard, while LoRa RF communication continuously updates the associated overhead display. The controller can also operate independently.
View specifications
SGCRX_V1
A single-sided overhead display for three production lines per transmitter. Each display presents four daily and four cumulative scrap-grade counts. Updated values flash temporarily, while an alarm remains active until acknowledged using the dedicated wired remote.
View specifications
RMR-192X64-RF
A two-part wireless request system originally developed for EPI/TPI material coordination and adaptable to other raw materials. Operators select a two-digit material code, while the overhead display shows its full name and production line with an alarm. Two requests can be displayed simultaneously.
View specificationsTell us your application, viewing distance and quantity.
