RMR-192X64-RF

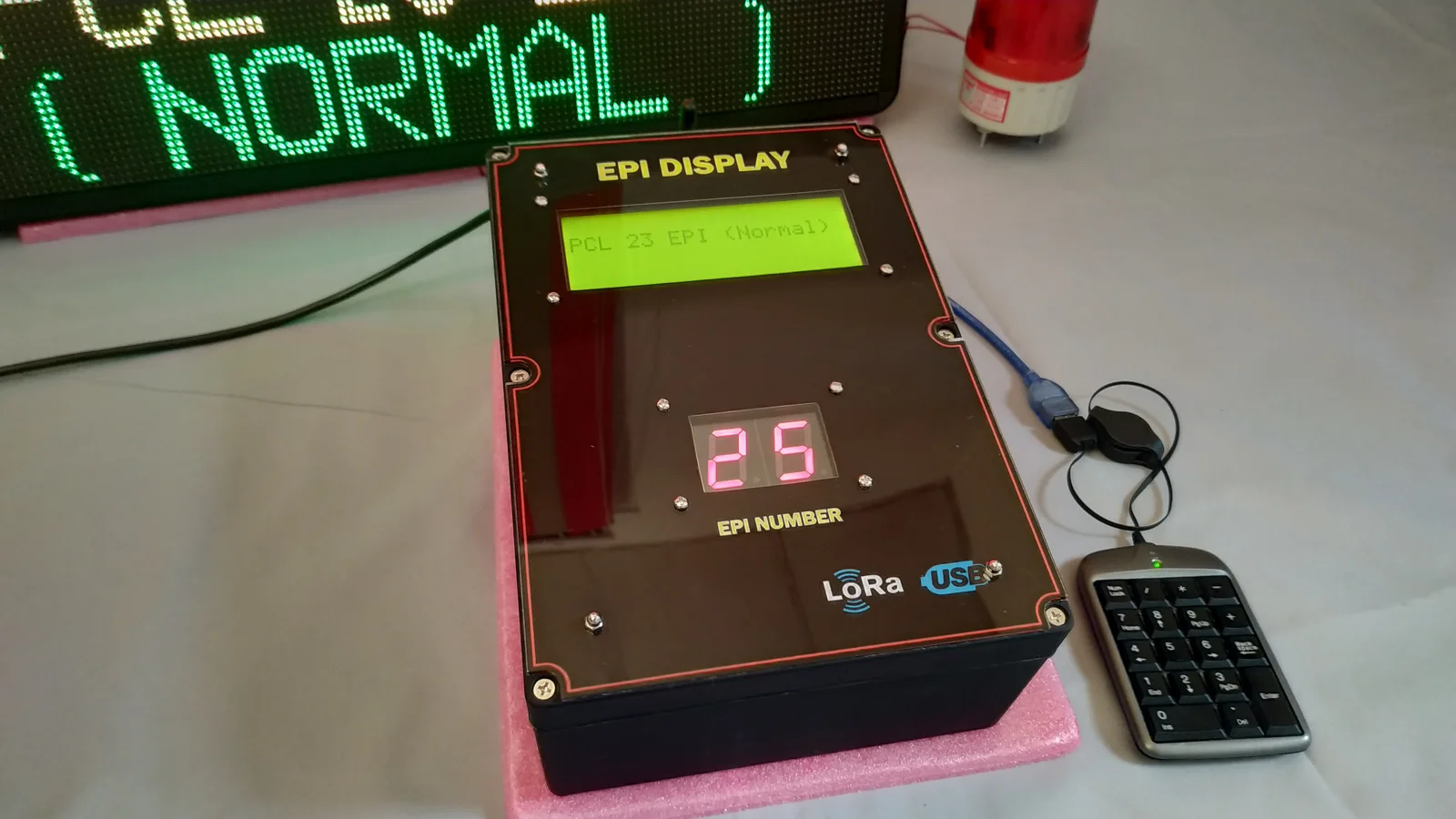

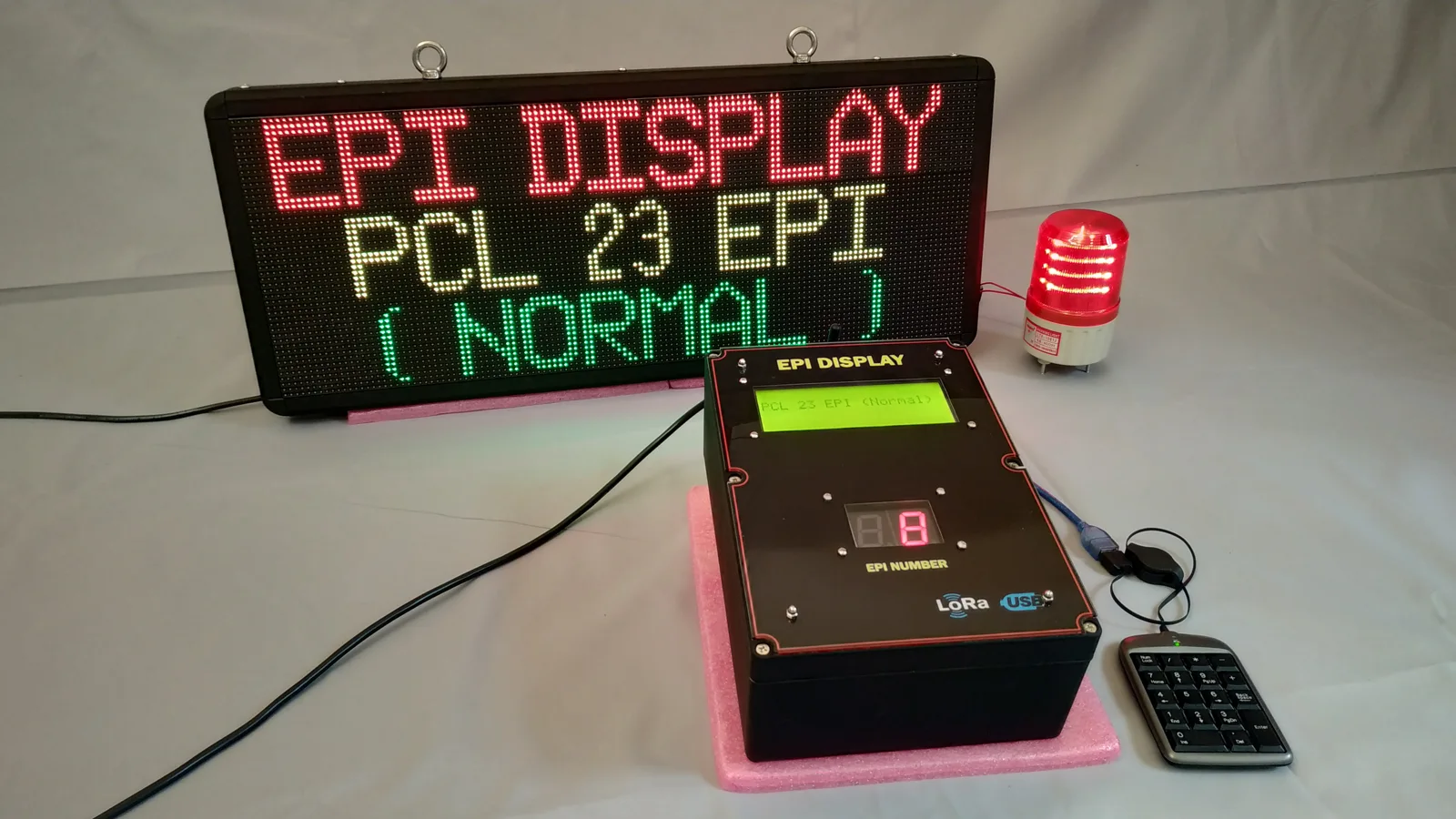

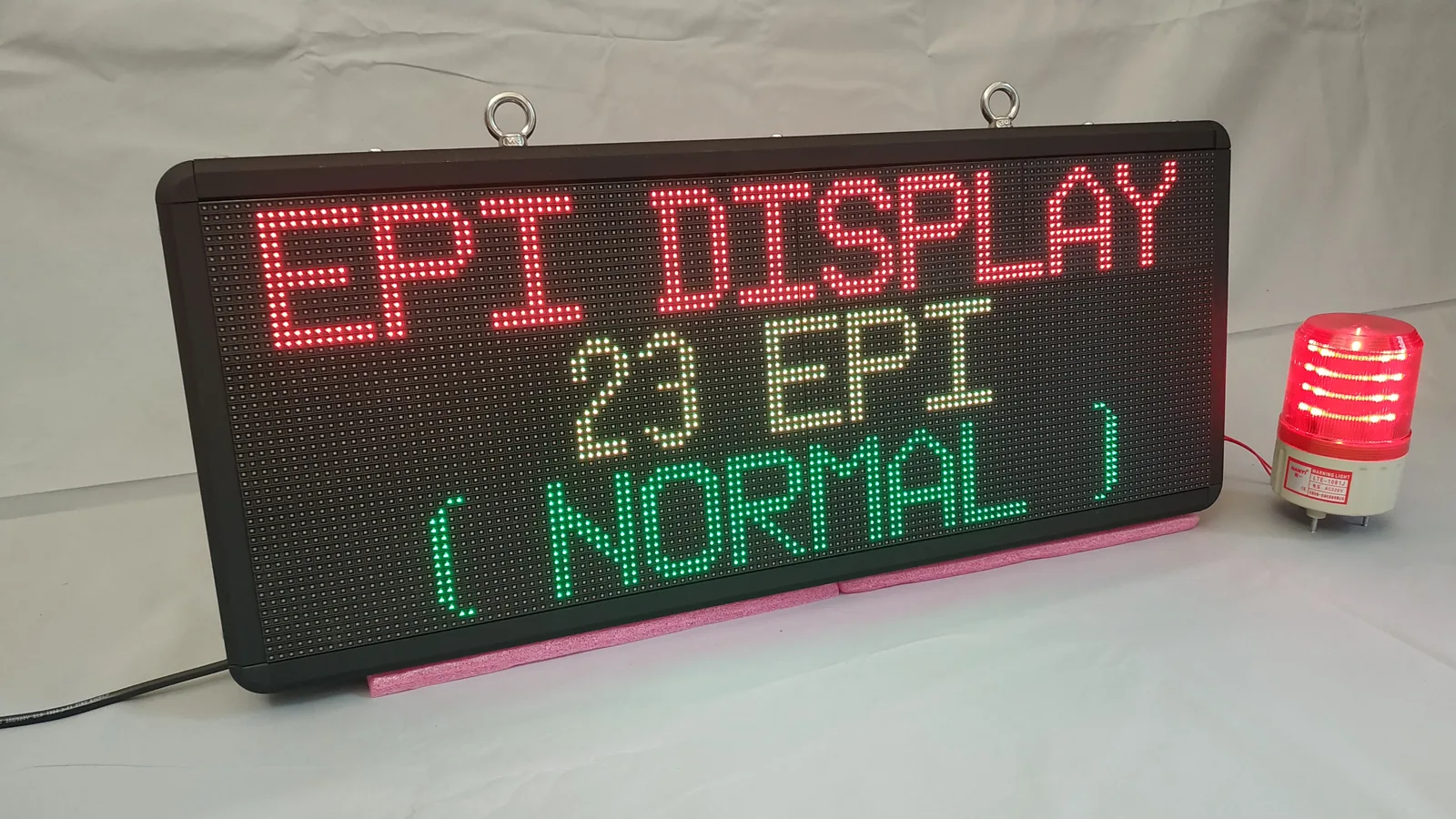

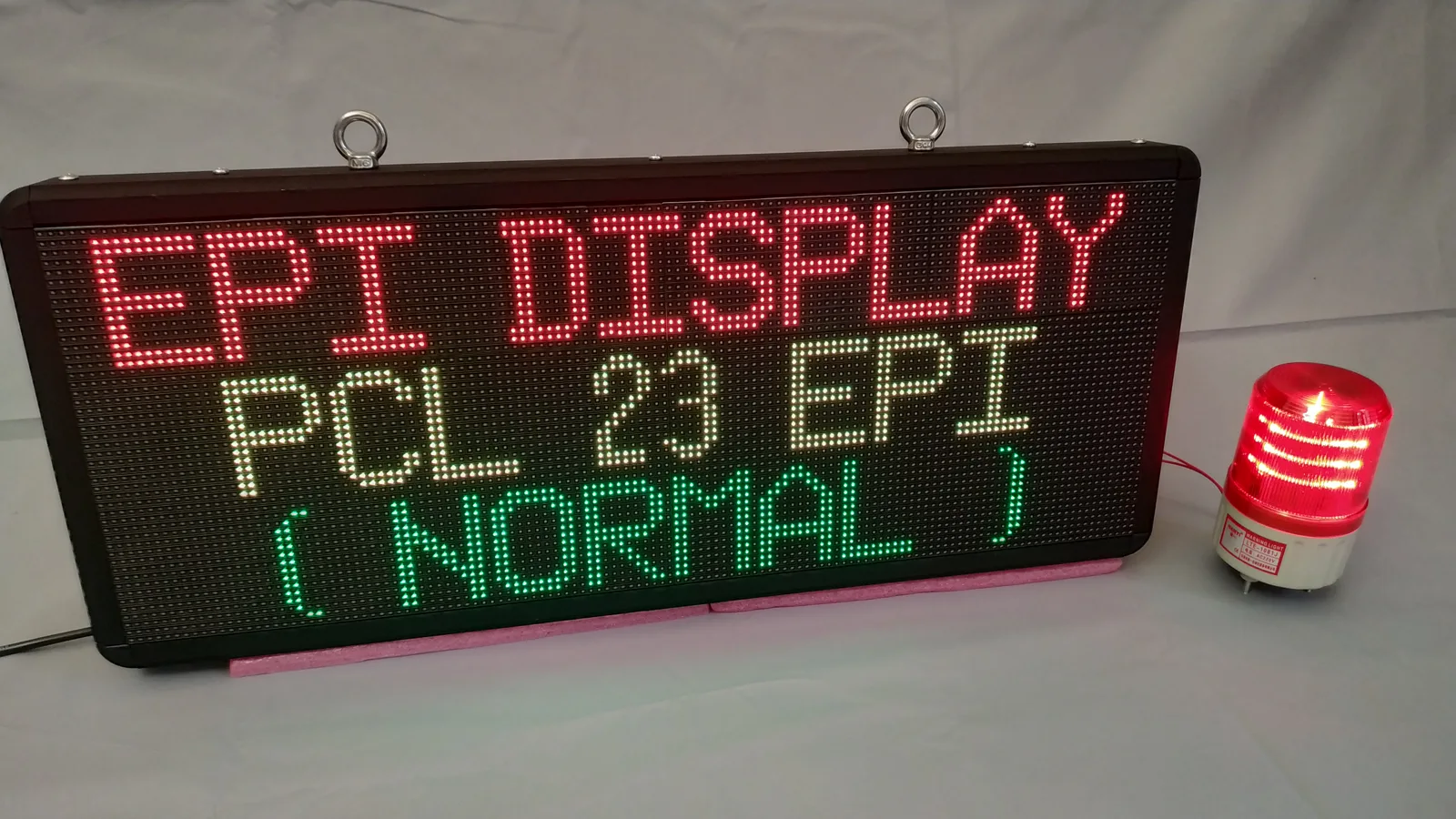

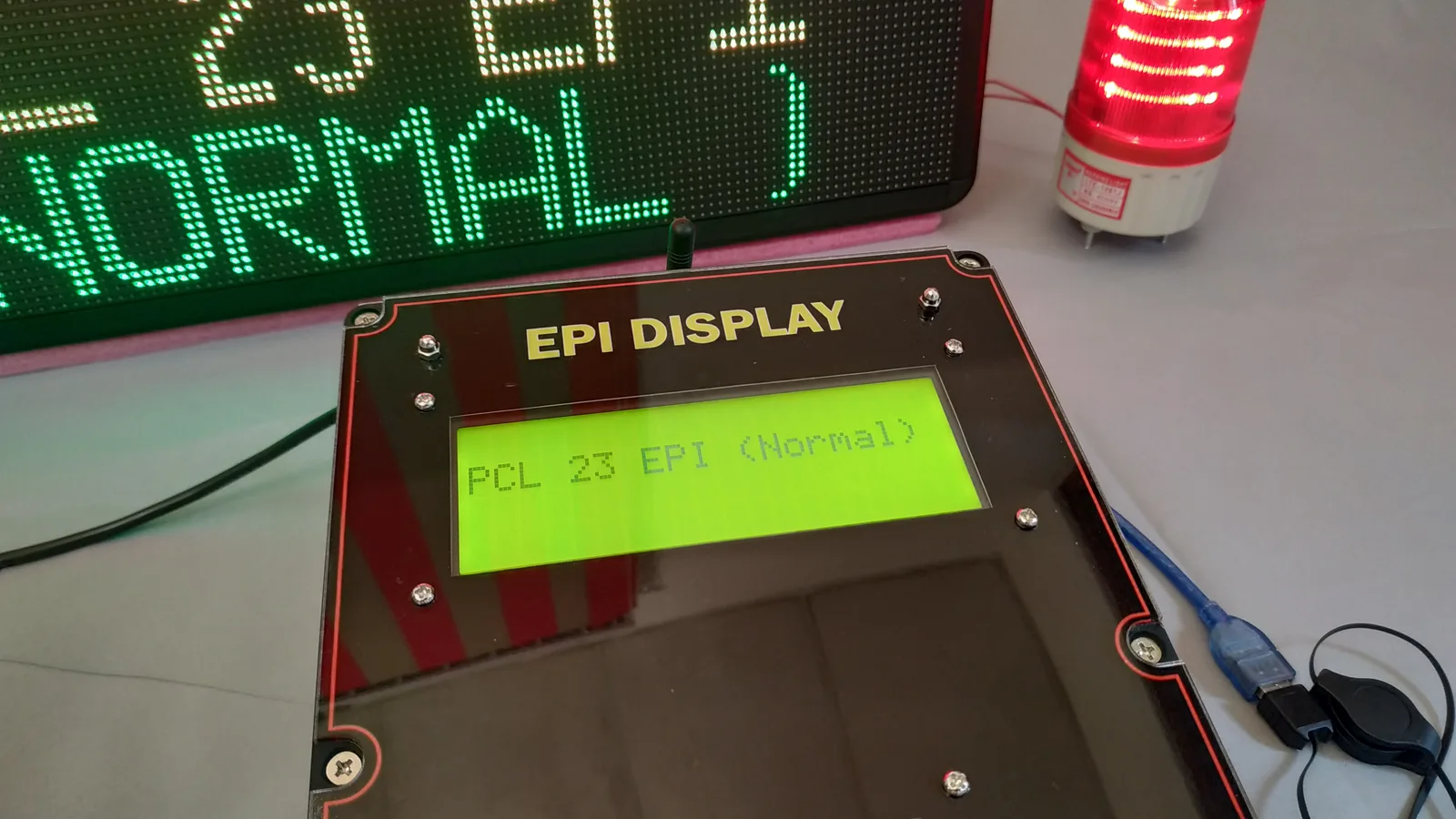

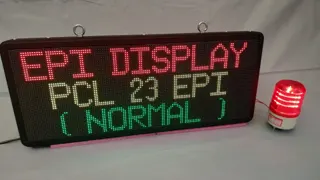

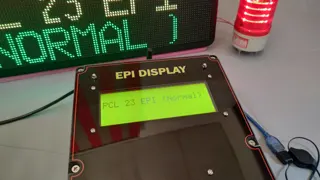

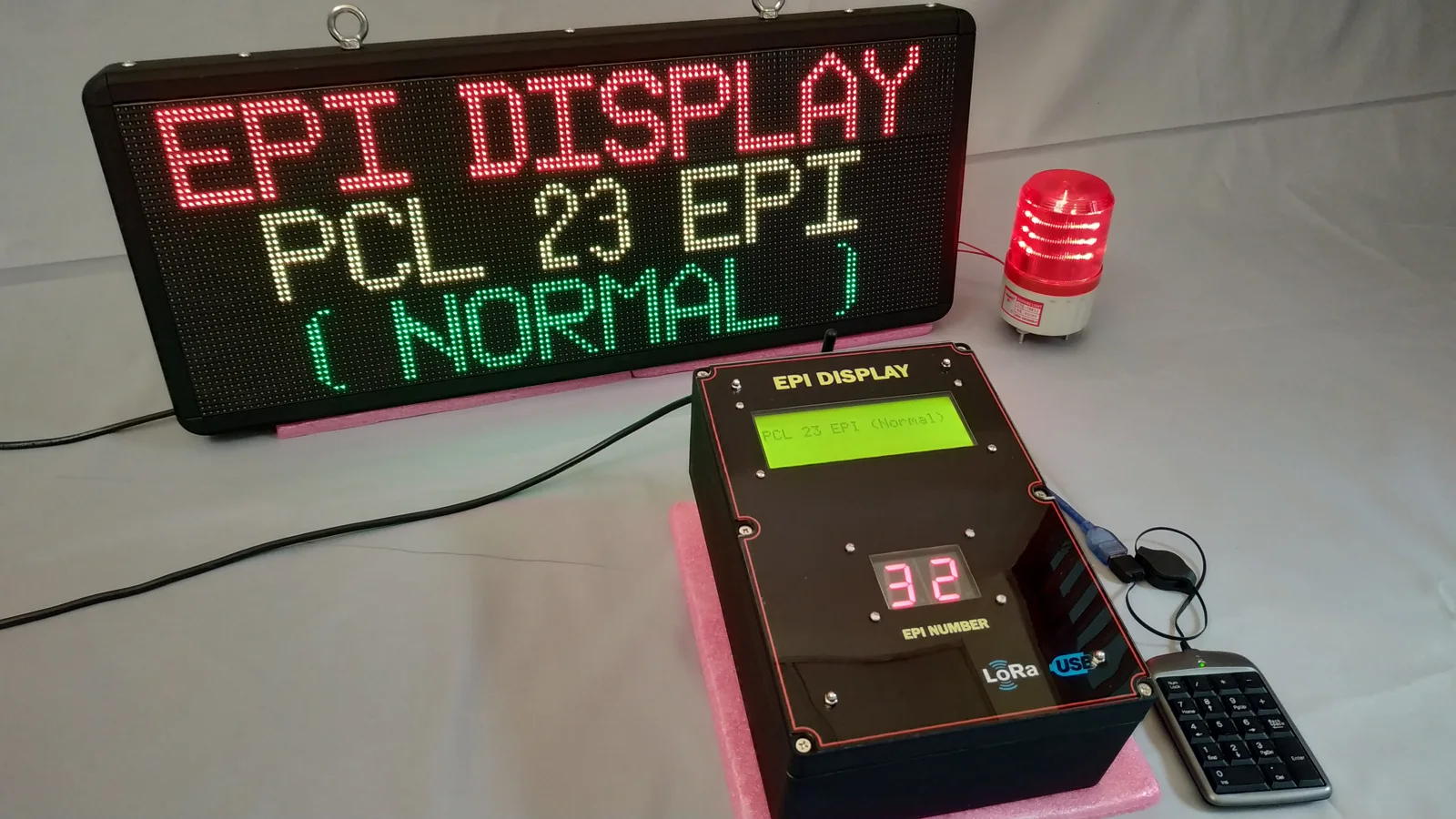

A two-part wireless request system originally developed for EPI/TPI material coordination and adaptable to other raw materials. Operators select a two-digit material code, while the overhead display shows its full name and production line with an alarm. Two requests can be displayed simultaneously.
Request a product quotation ↗Confirm quantity, colour and application for a formal quotation.
| Matrix Display | 192 × 64 pixels; red, green, amber |
|---|---|
| Request Status | Red flash; amber after 5 minutes |
| Display Content | Material name, line and 2 requests |
| Alarm & Rf Link | Timed alarm, confirmed LoRa, blue LED |
| Material Records | 99 codes; PIN admin; non-volatile memory |
| Viewing Distance | Up to 10.7 m (35 ft) |
| Data Entry | USB number pad and character LCD |
| Dimensions | 914 × 305 × 50 mm |
RMR-192X64-RF
Specify the required colour and configuration when requesting a quotation. Weight is not provided in the catalogue where omitted above.
Raw-material coordination using EPI/TPI or other configured material records.
SGCTX_V1
A desktop scrap-grading controller that maintains 12 daily and 12 cumulative counters. Operators manage all functions using a wireless QWERTY keyboard, while LoRa RF communication continuously updates the associated overhead display. The controller can also operate independently.
View specifications
SGCRX_V1
A single-sided overhead display for three production lines per transmitter. Each display presents four daily and four cumulative scrap-grade counts. Updated values flash temporarily, while an alarm remains active until acknowledged using the dedicated wired remote.
View specifications
ODI-2CH-RF
A wireless obstacle-detection and PLC interlock system for rail-mounted moving machinery. Two forward-facing sensors monitor the travel path, while separate obstacle and link-status relays provide alarm and movement-permission signals to the PLC.
View specificationsTell us your application, viewing distance and quantity.
