SGCTX_V1

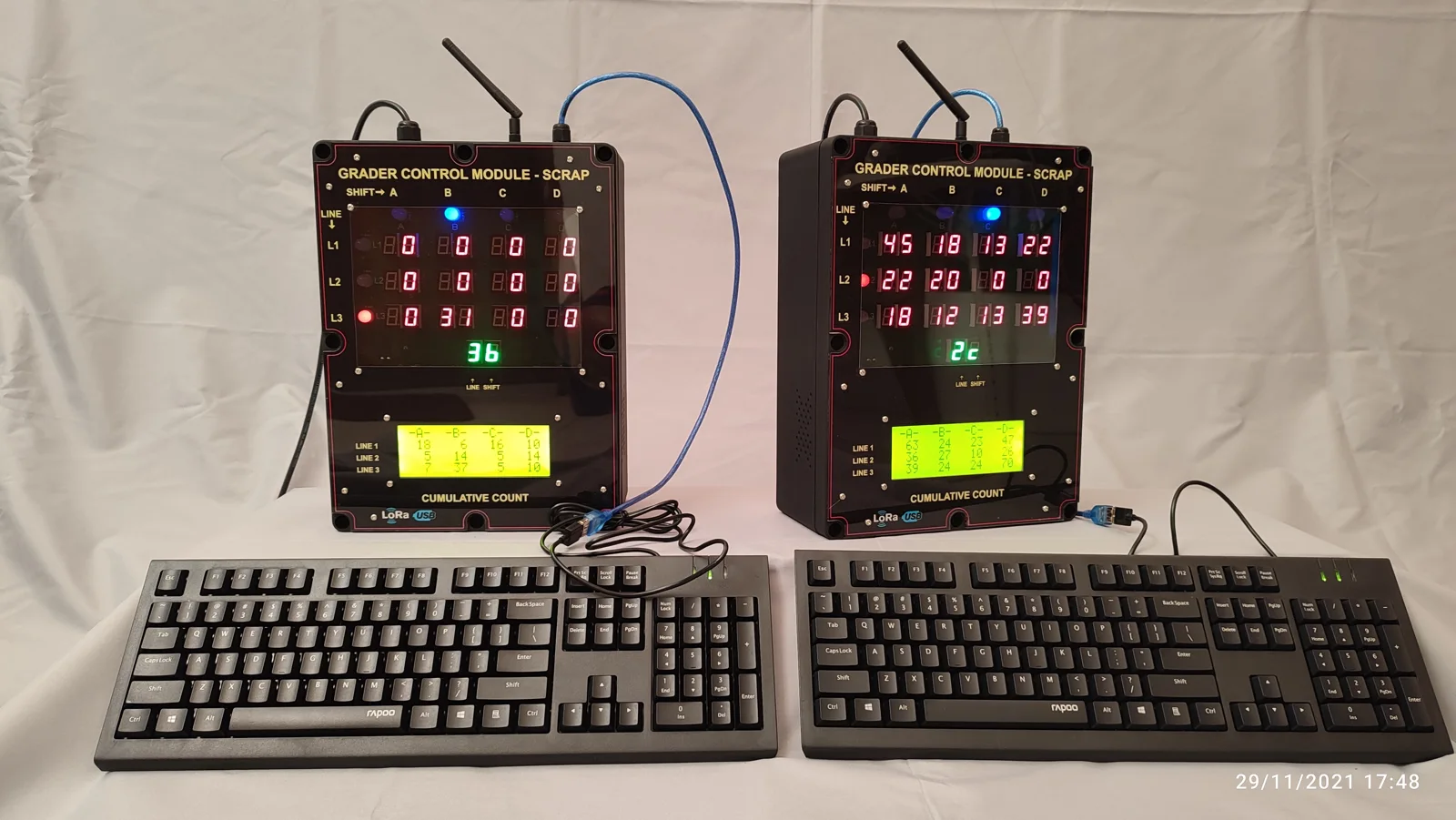

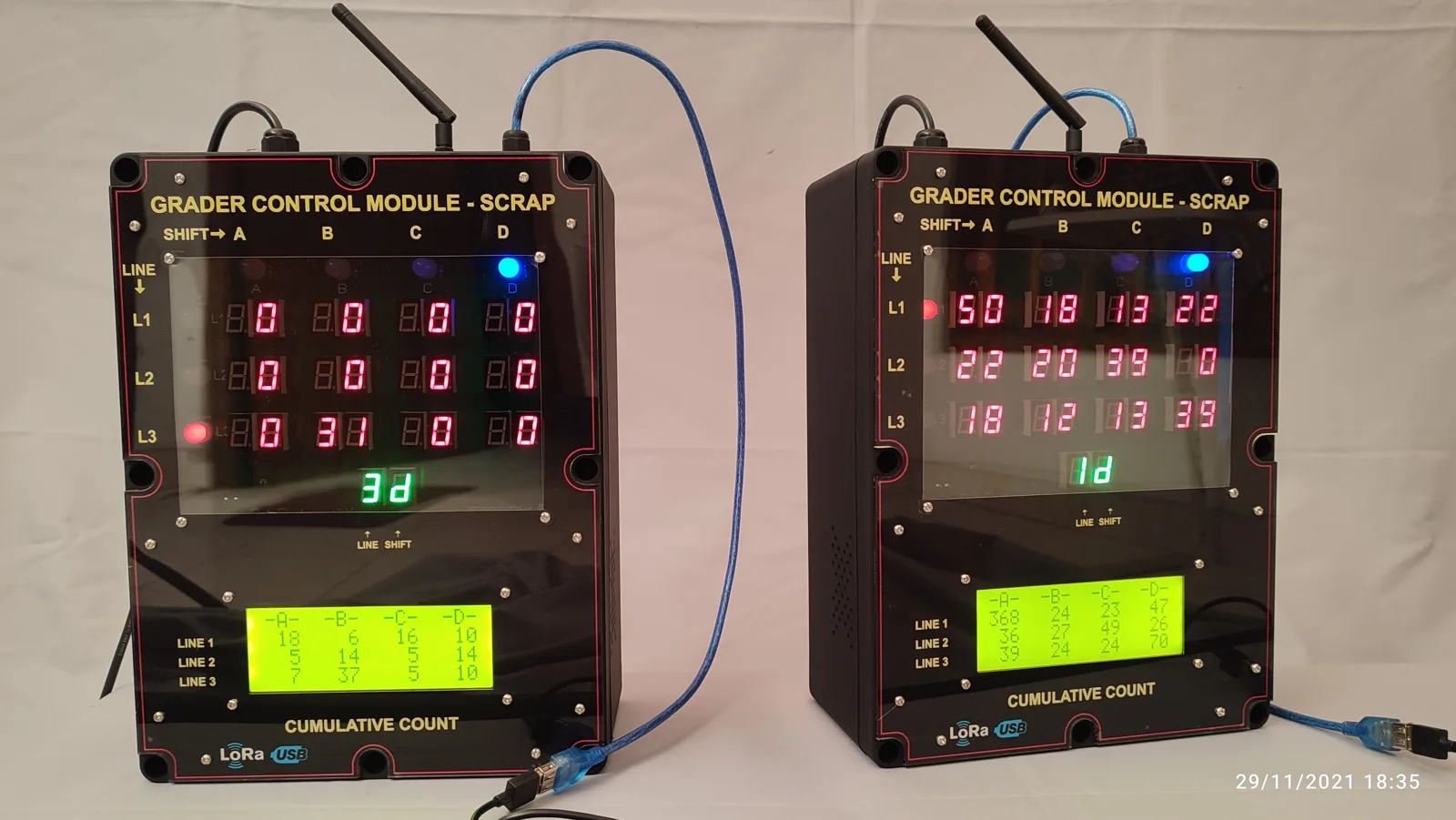

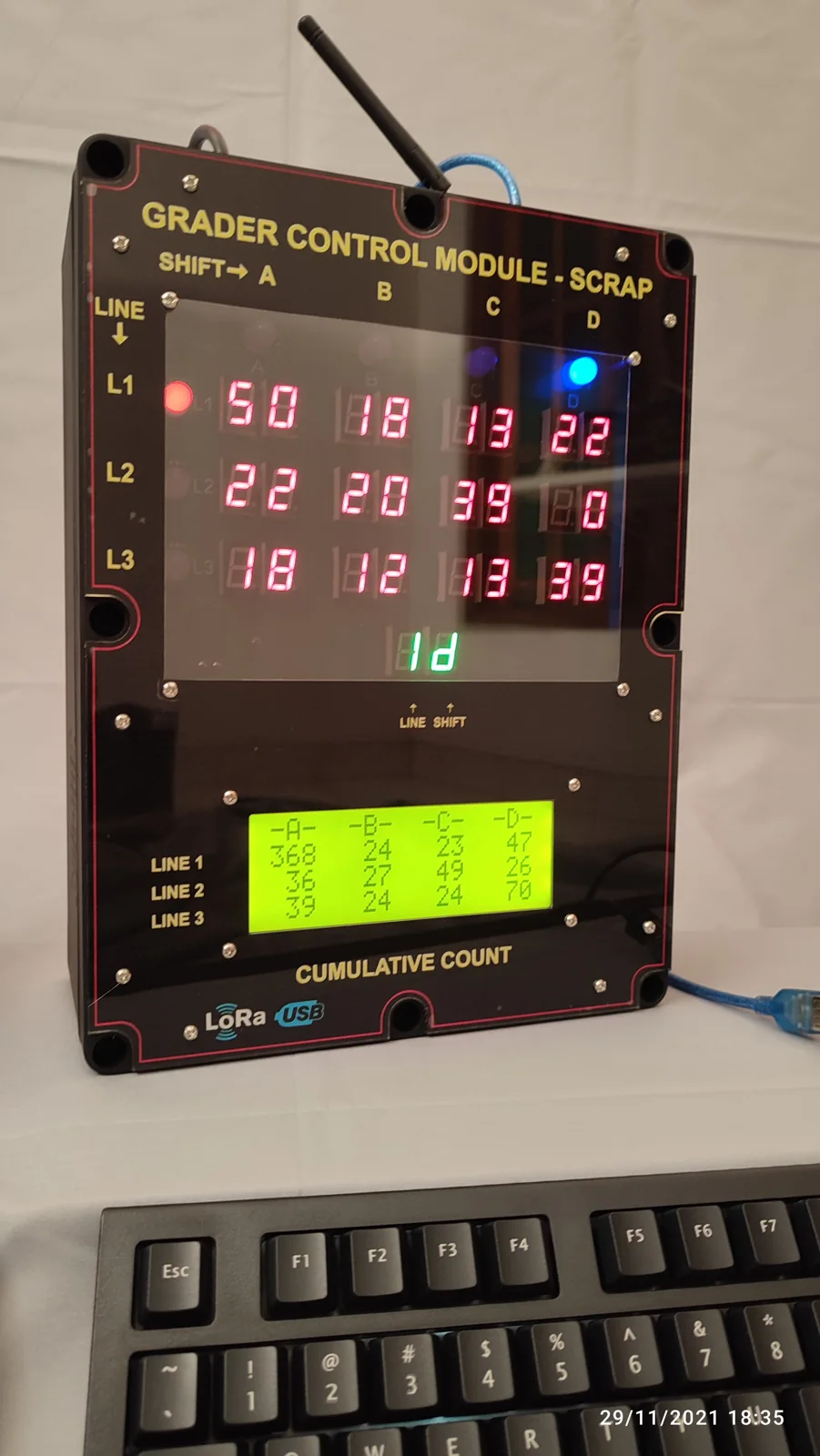

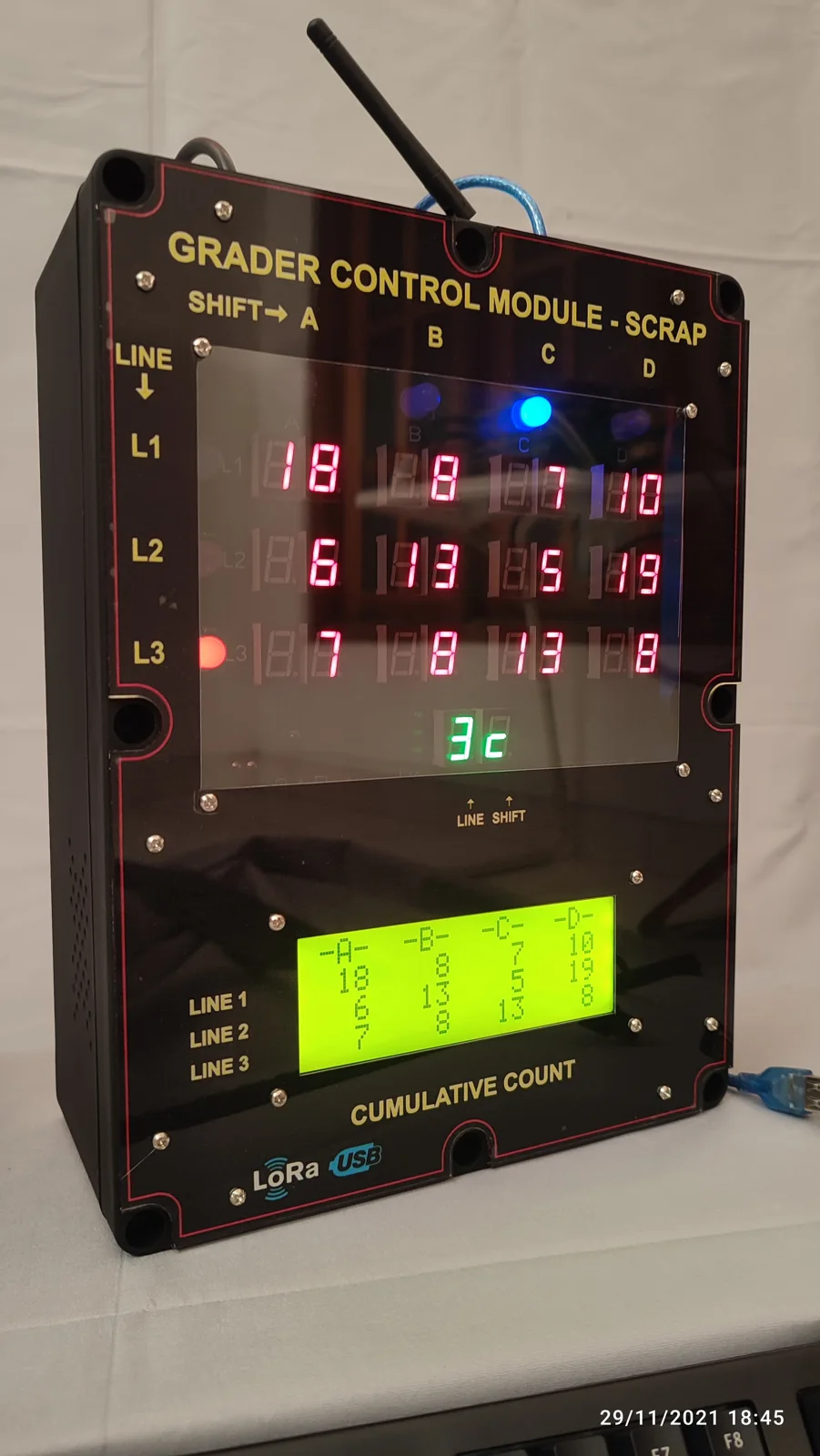

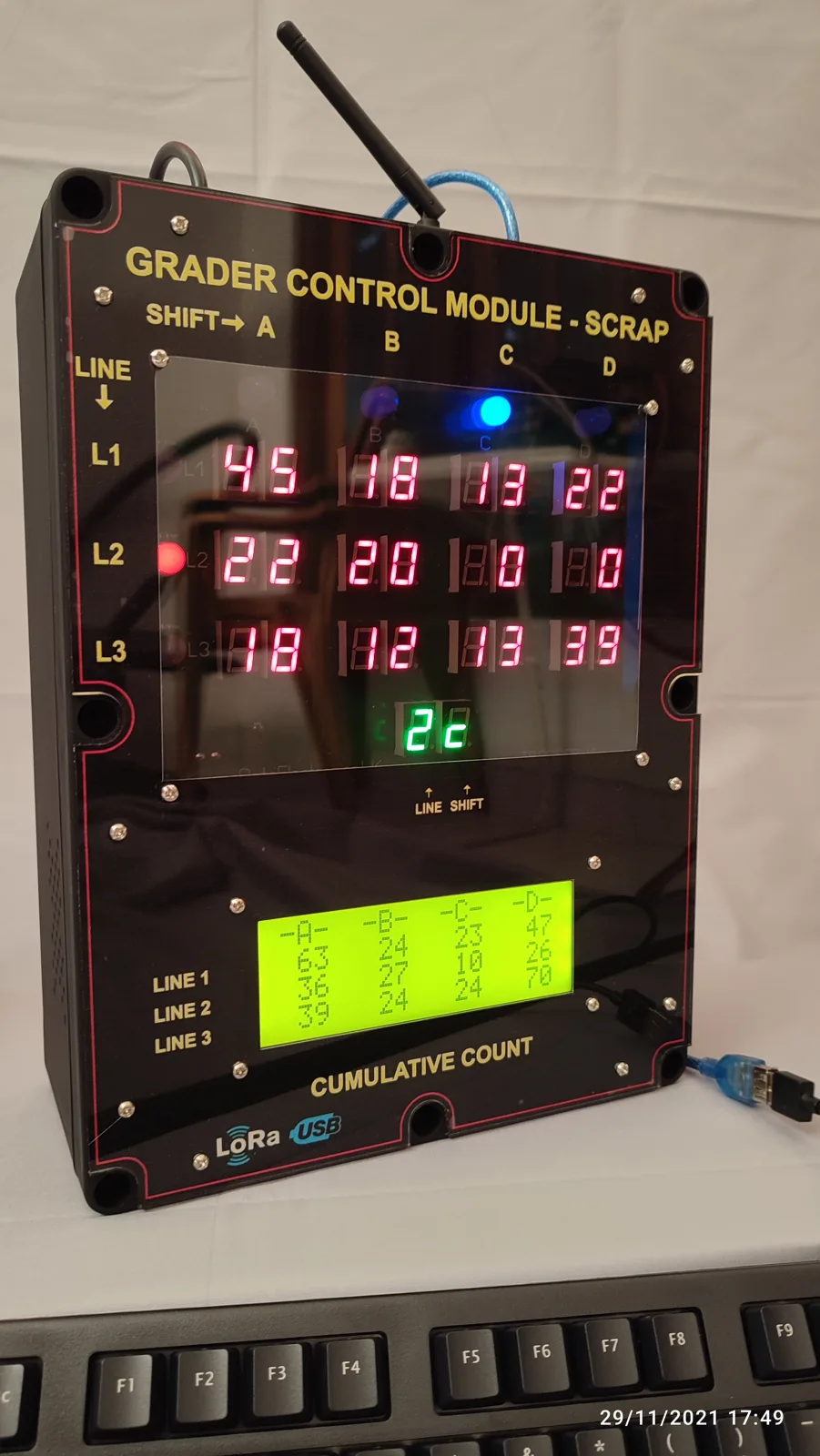

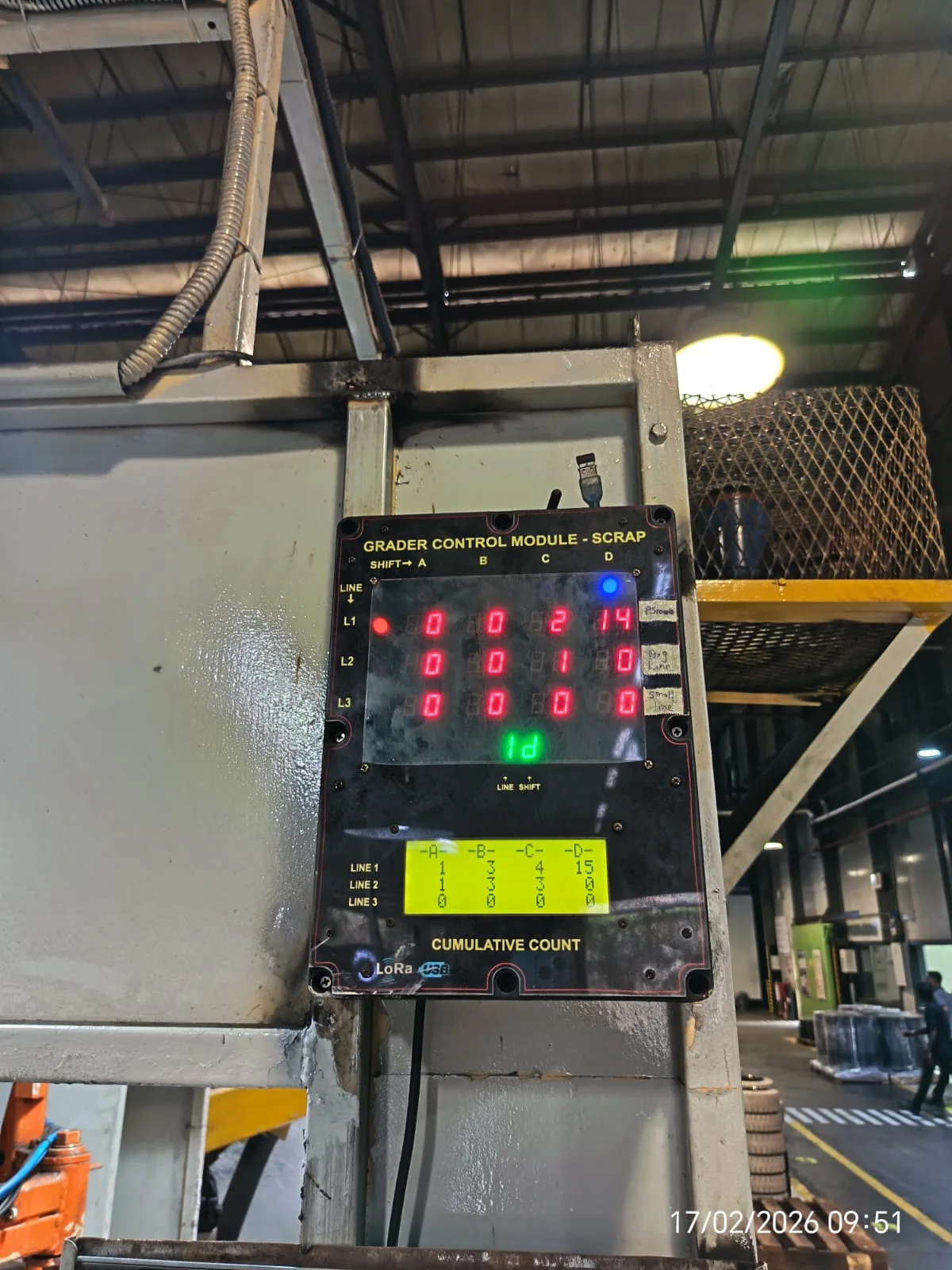

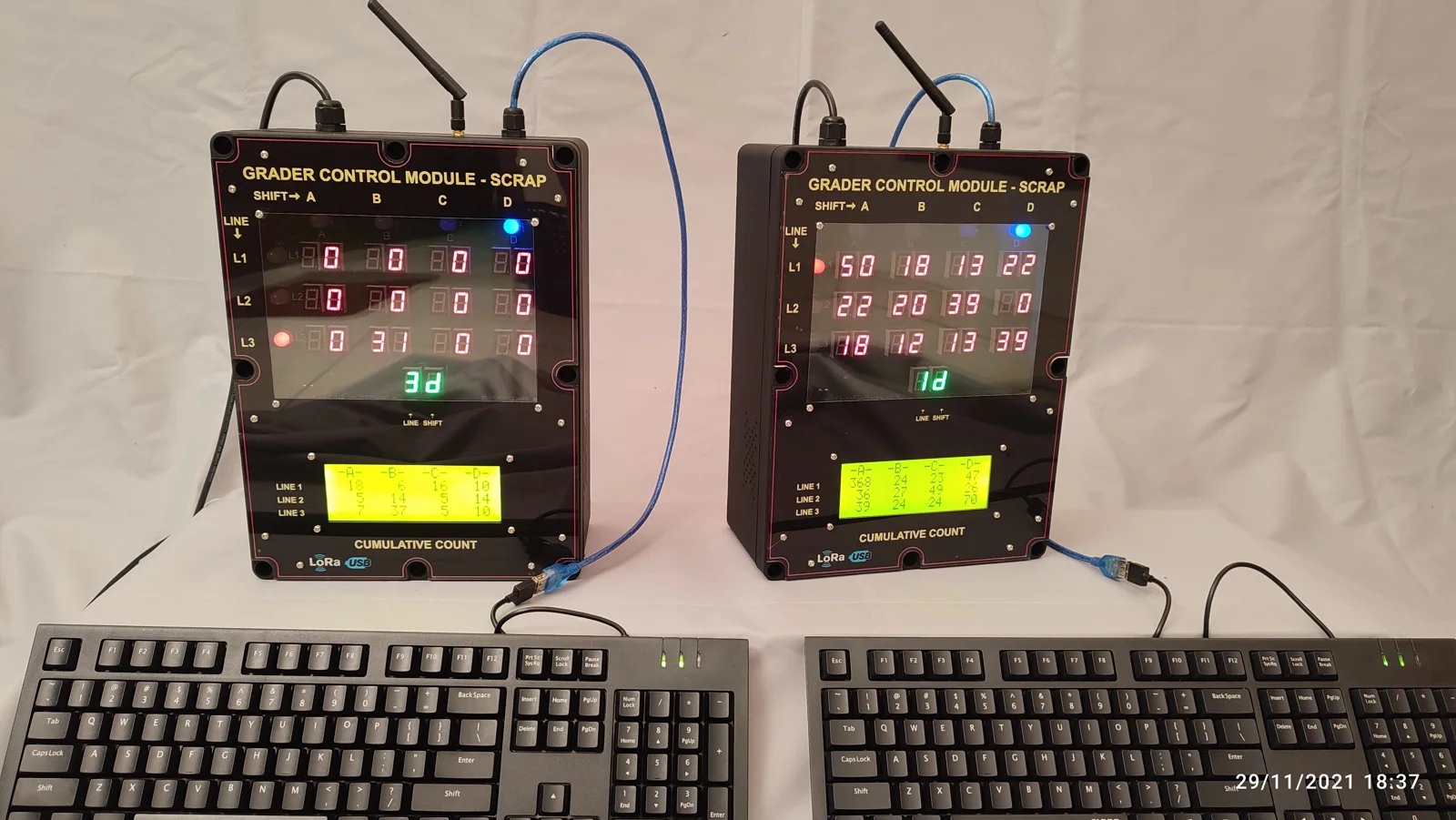

A desktop scrap-grading controller that maintains 12 daily and 12 cumulative counters. Operators manage all functions using a wireless QWERTY keyboard, while LoRa RF communication continuously updates the associated overhead display. The controller can also operate independently.
Request a product quotation ↗Confirm quantity, colour and application for a formal quotation.
| Daily Display | 0.56-inch LED digits |
|---|---|
| Data Retention | Built-in EEPROM memory |
| Cumulative Display | Character LCD screen |
| Communication | Continuous LoRa RF data link |
| Counter Capacity | 12 daily and 12 cumulative counters |
| Alarm Indication | Rotating LED alarm light |
| Control Method | USB wireless QWERTY keyboard |
| Power Supply | Built-in 230 V AC |
SGCTX_V1
Specify the required colour and configuration when requesting a quotation. Weight is not provided in the catalogue where omitted above.
Scrap grading with daily and cumulative counts, operated independently or with overhead displays.
SGCRX_V1
A single-sided overhead display for three production lines per transmitter. Each display presents four daily and four cumulative scrap-grade counts. Updated values flash temporarily, while an alarm remains active until acknowledged using the dedicated wired remote.
View specifications
ODI-2CH-RF
A wireless obstacle-detection and PLC interlock system for rail-mounted moving machinery. Two forward-facing sensors monitor the travel path, while separate obstacle and link-status relays provide alarm and movement-permission signals to the PLC.
View specifications
RMR-192X64-RF
A two-part wireless request system originally developed for EPI/TPI material coordination and adaptable to other raw materials. Operators select a two-digit material code, while the overhead display shows its full name and production line with an alarm. Two requests can be displayed simultaneously.
View specificationsTell us your application, viewing distance and quantity.
