RMR-256X64-RF

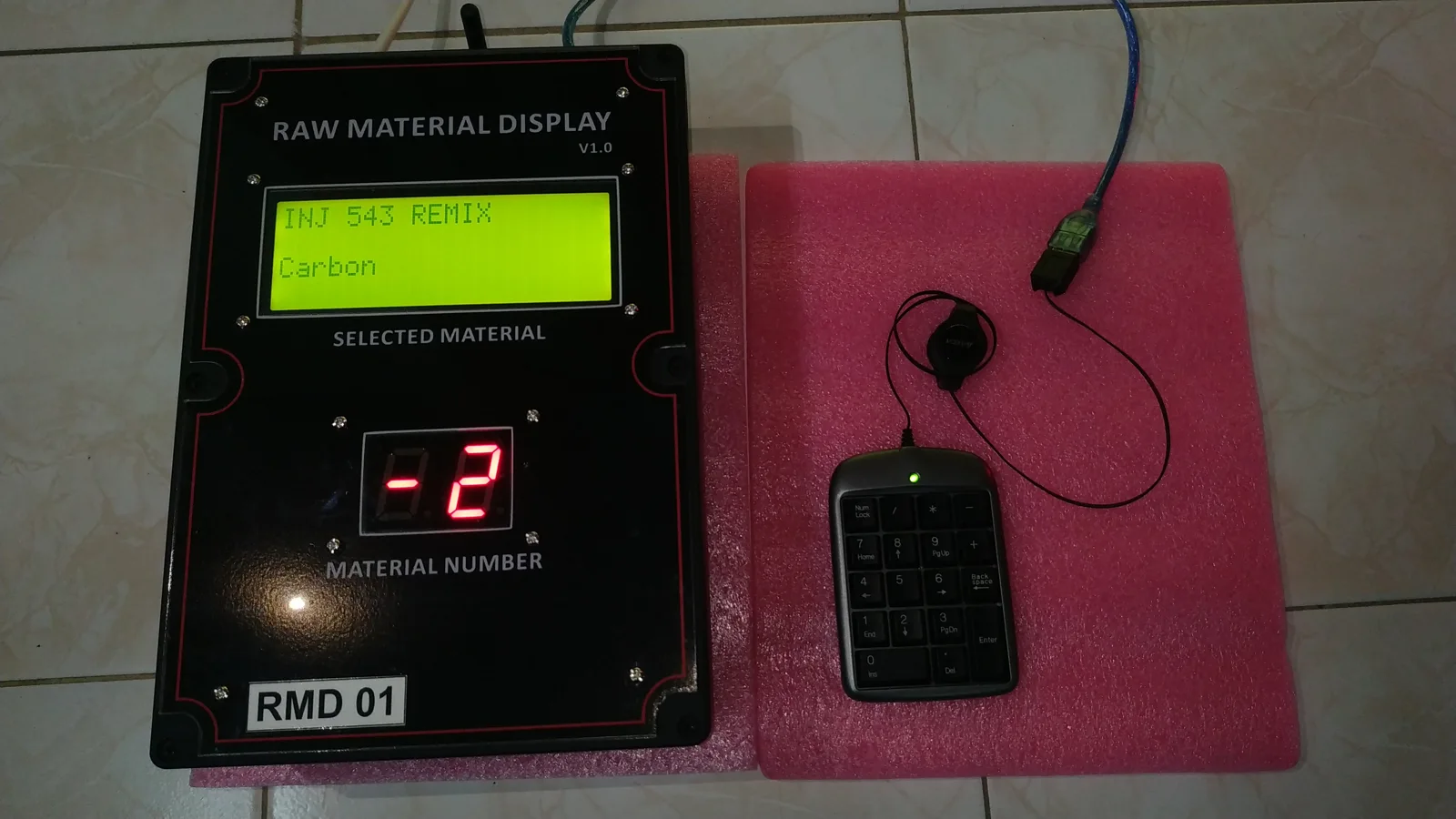

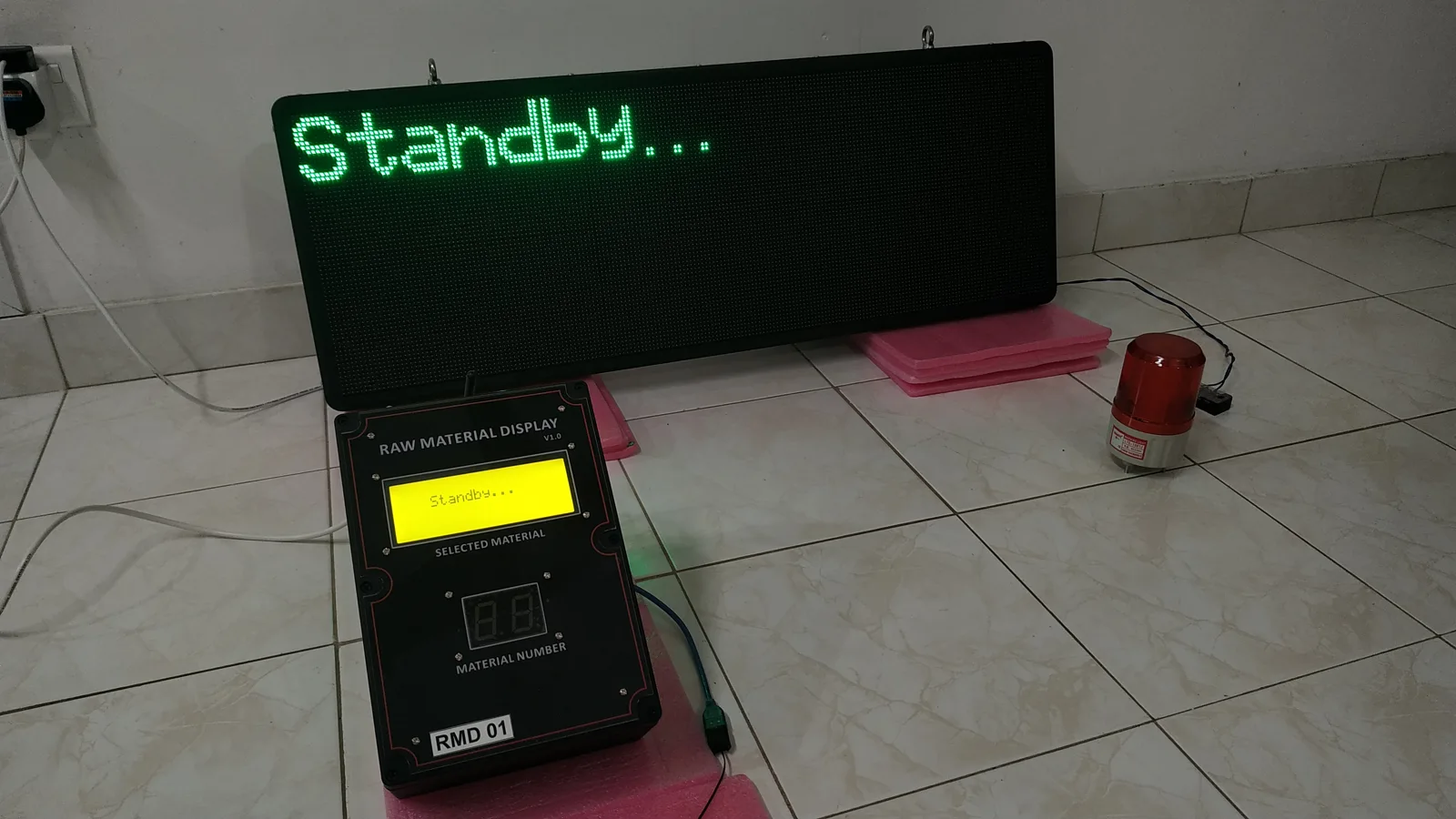

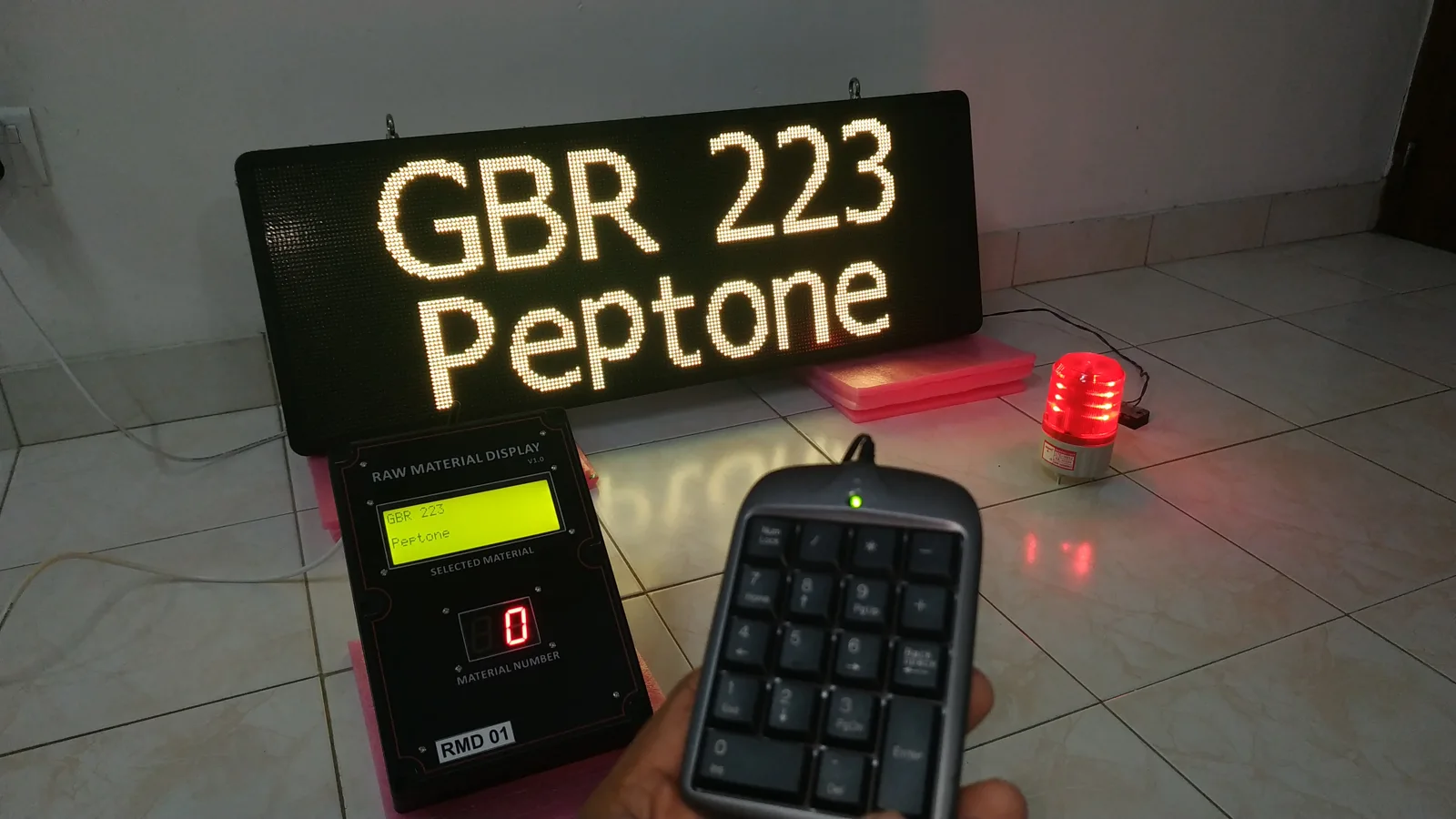

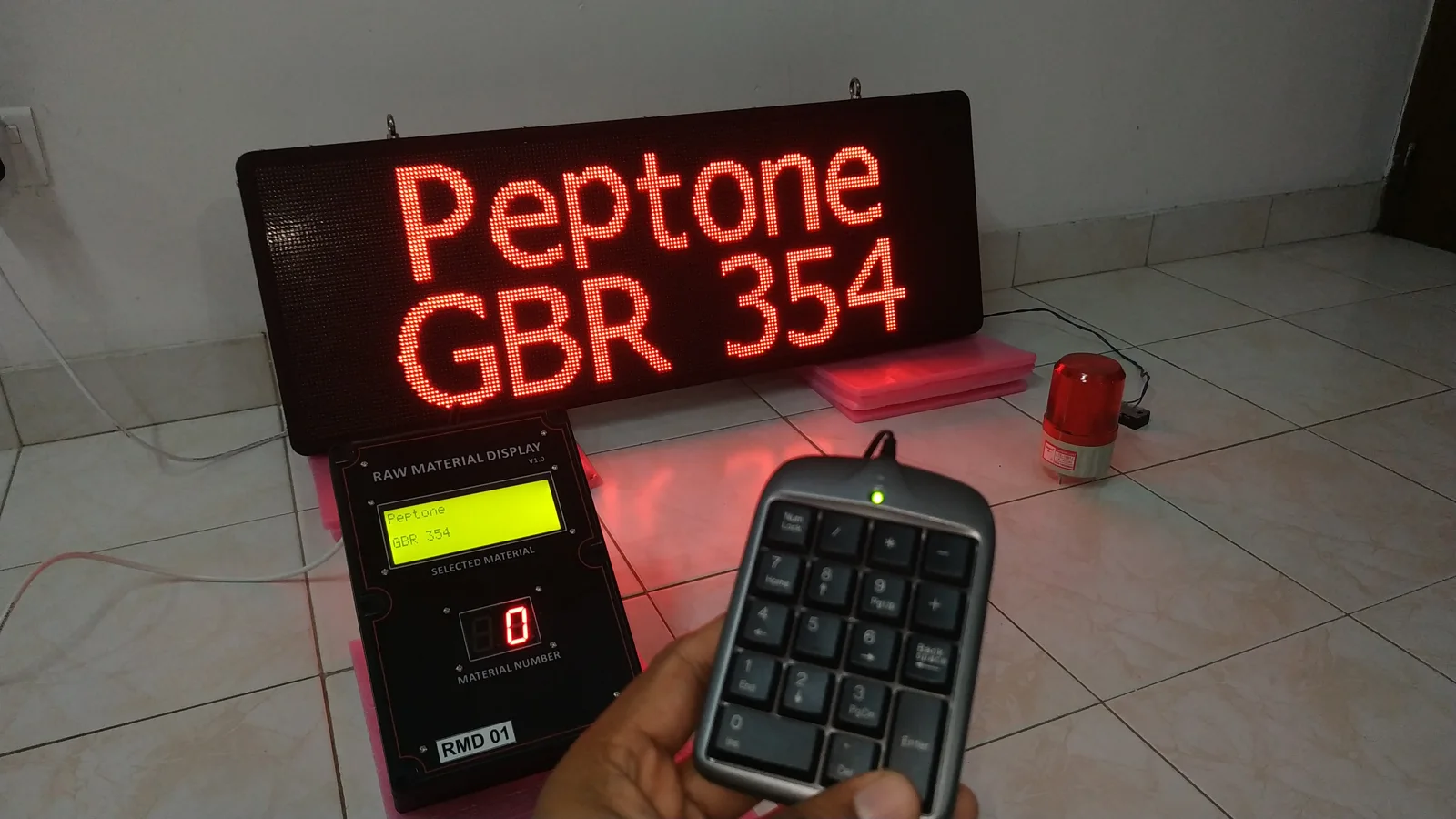

A large-format wireless material-request system supplied with 35 raw-material records and expandable to 99. Operators enter two-digit codes through the LCD-equipped data module, while the overhead display presents up to two requests with audible and colour-coded alerts.
Request a product quotation ↗Confirm quantity, colour and application for a formal quotation.
| Matrix Display | 256 × 64 pixels; red, green, amber |
|---|---|
| Request Status | Red flash; amber after 5 minutes |
| Display Content | Material name, line and 2 requests |
| Alarm & Rf Link | Timed alarm, confirmed LoRa, blue LED |
| Material Records | 35 supplied; 99 max; PIN admin |
| Viewing Distance | Up to 13.7 m (45 ft) |
| Data Entry | USB number pad and character LCD |
| Dimensions | 1219 × 305 × 50 mm |
RMR-256X64-RF
Specify the required colour and configuration when requesting a quotation. Weight is not provided in the catalogue where omitted above.
Raw-material request coordination where a larger matrix display is required.
SGCTX_V1
A desktop scrap-grading controller that maintains 12 daily and 12 cumulative counters. Operators manage all functions using a wireless QWERTY keyboard, while LoRa RF communication continuously updates the associated overhead display. The controller can also operate independently.
View specifications
SGCRX_V1
A single-sided overhead display for three production lines per transmitter. Each display presents four daily and four cumulative scrap-grade counts. Updated values flash temporarily, while an alarm remains active until acknowledged using the dedicated wired remote.
View specifications
ODI-2CH-RF
A wireless obstacle-detection and PLC interlock system for rail-mounted moving machinery. Two forward-facing sensors monitor the travel path, while separate obstacle and link-status relays provide alarm and movement-permission signals to the PLC.
View specificationsTell us your application, viewing distance and quantity.
