BCD-256X64-RF

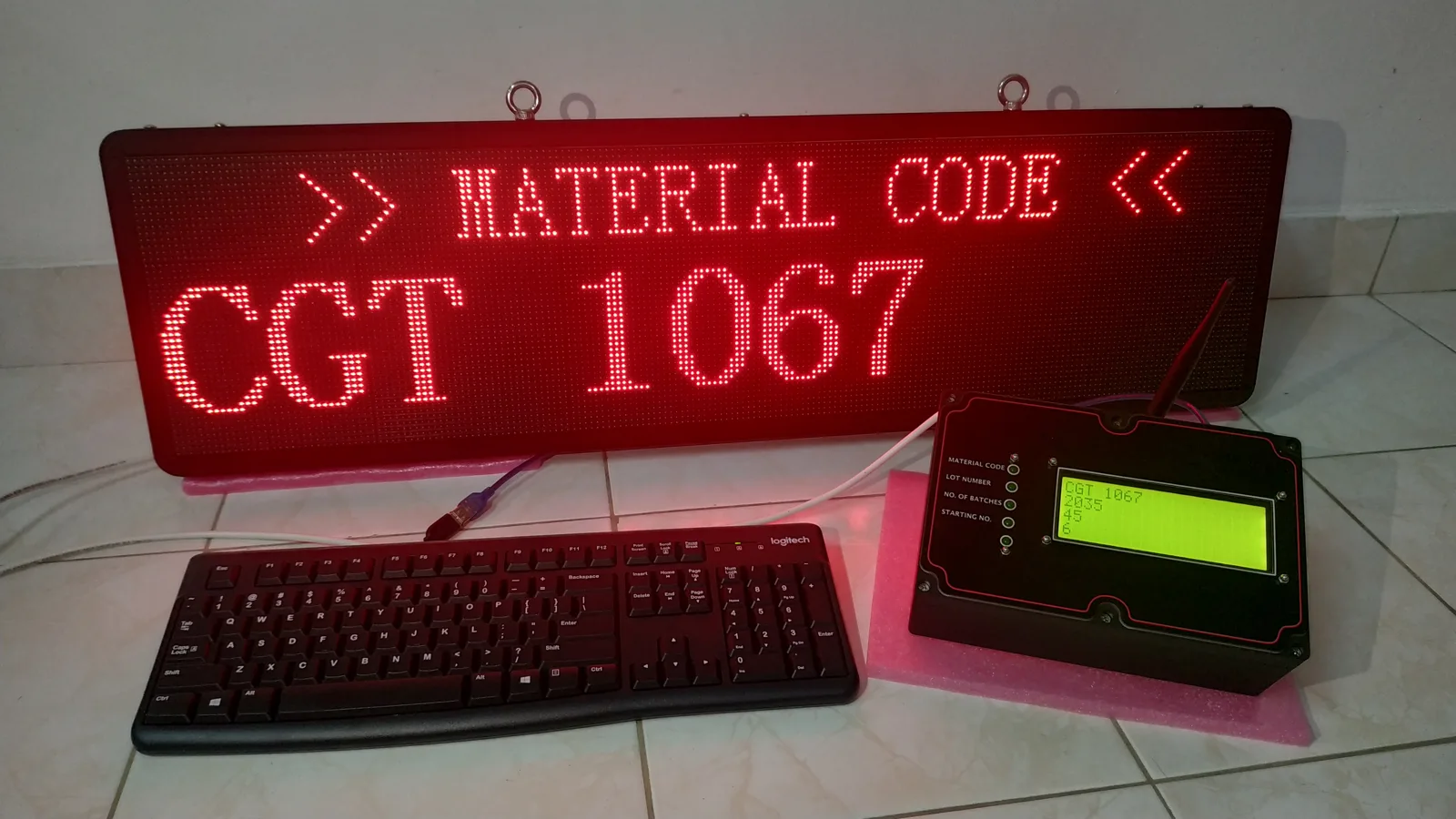

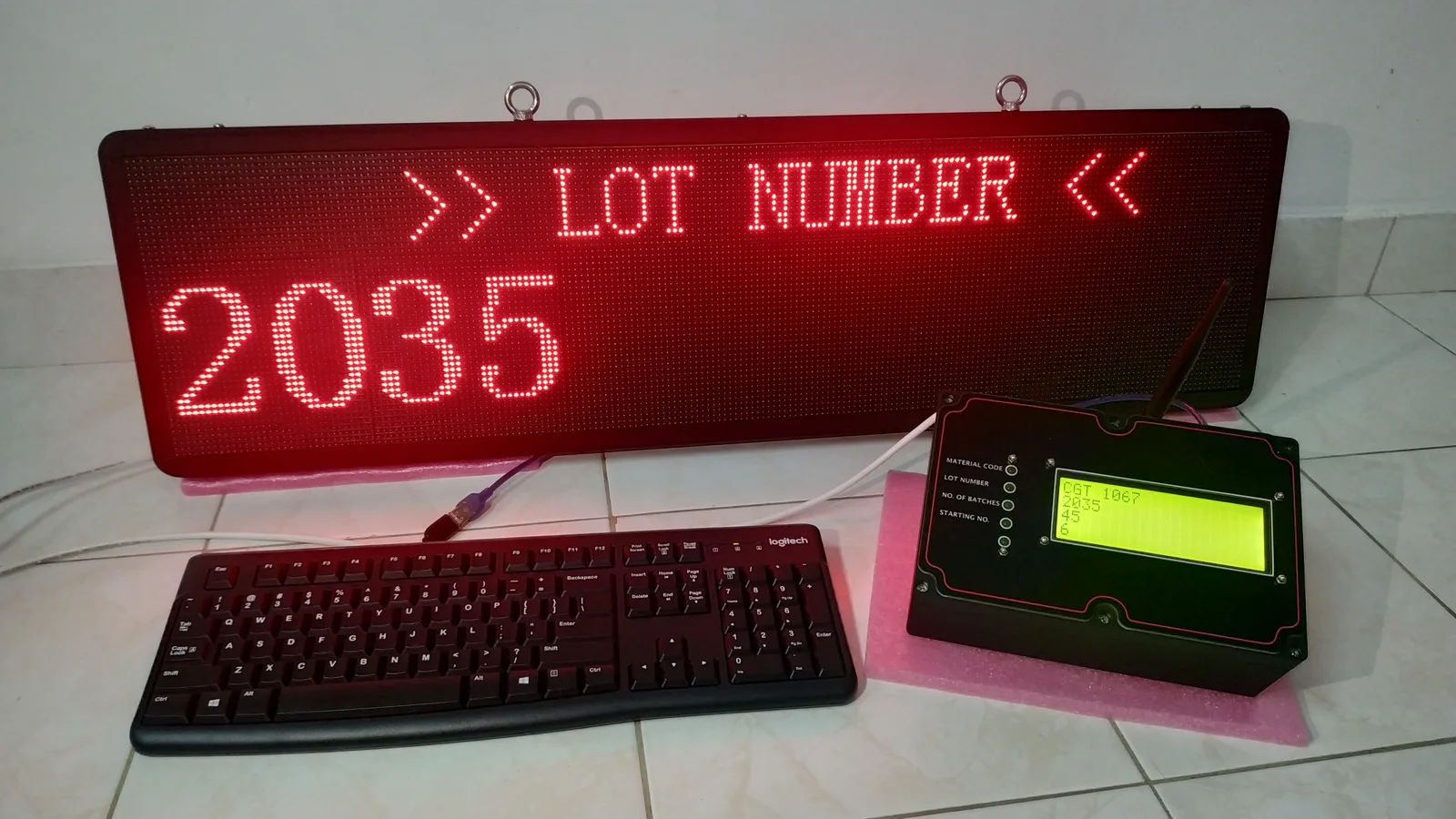

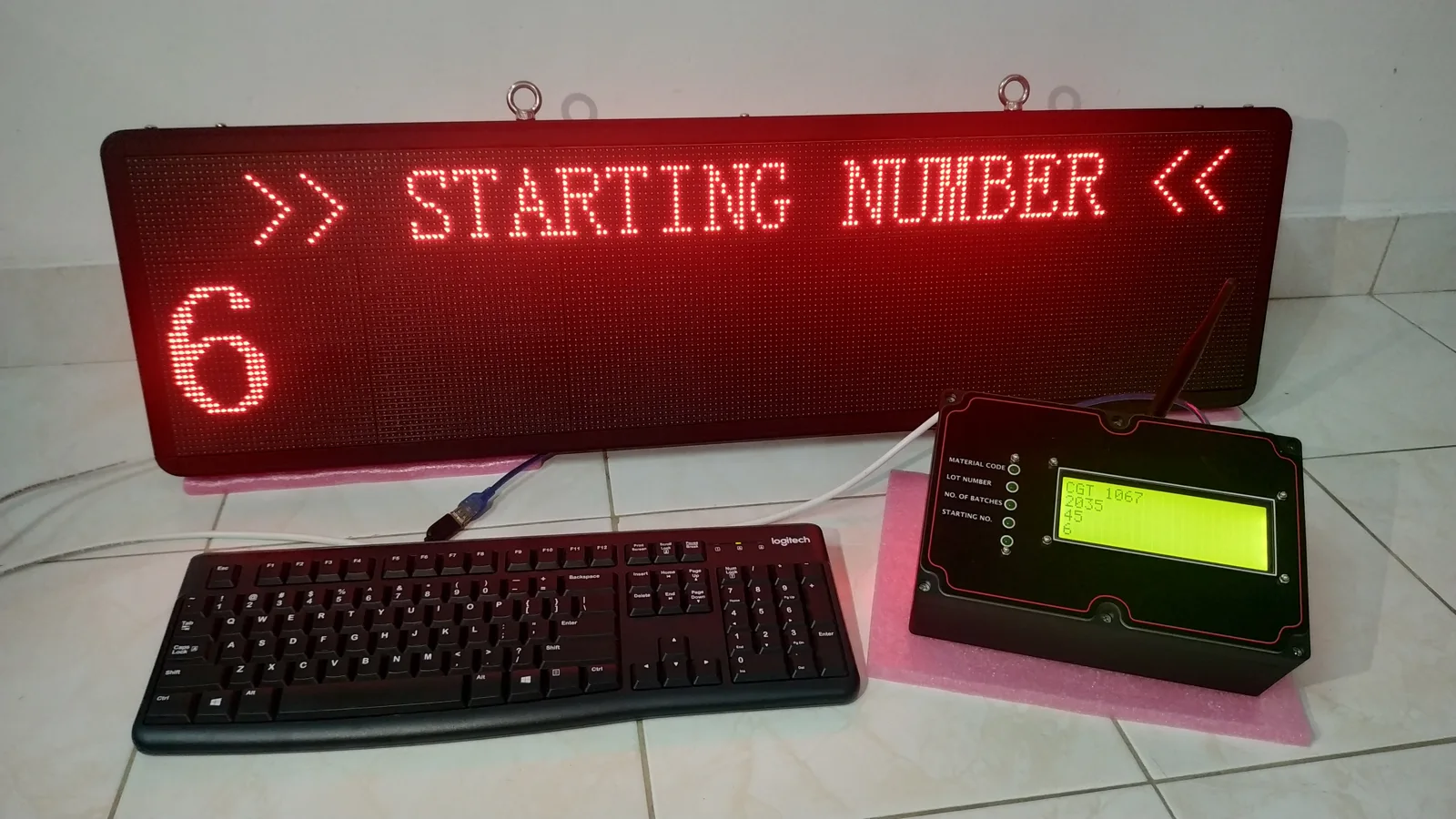

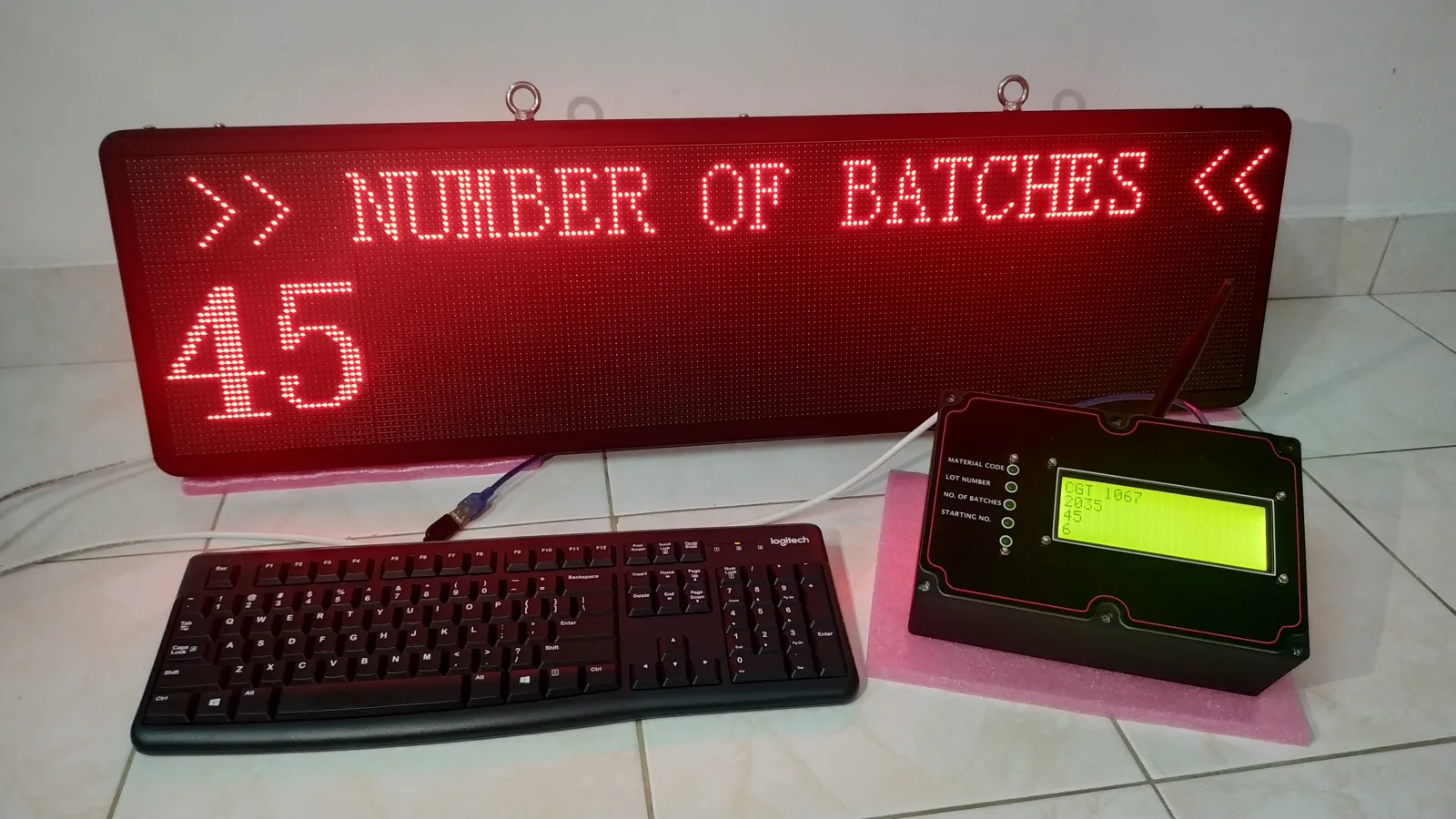

A wireless production-data system developed for tyre manufacturing. Administrators create PIN-protected headings, while operators enter and maintain information using a full QWERTY keyboard. Each heading and its data appears for 15 seconds before rotating to the next entry, reducing delays and verbal communication.
Request a product quotation ↗Confirm quantity, colour and application for a formal quotation.
| Matrix Display | 256 × 64 pixels; red only |
|---|---|
| Text Capacity | Long text scrolls automatically |
| Display Mode | One heading; rotates every 15 seconds |
| Rf & Memory | Confirmed LoRa updates; power-loss retention |
| Heading Setup | PIN-protected; customized as required |
| Viewing Distance | Up to 13.7 m (45 ft) |
| Data Entry | Wireless USB QWERTY keyboard; large LCD |
| Dimensions | 1219 × 305 × 50 mm |
BCD-256X64-RF
Specify the required colour and configuration when requesting a quotation. Weight is not provided in the catalogue where omitted above.
Tyre-manufacturing production data and rotating operator-entered information.
SGCTX_V1
A desktop scrap-grading controller that maintains 12 daily and 12 cumulative counters. Operators manage all functions using a wireless QWERTY keyboard, while LoRa RF communication continuously updates the associated overhead display. The controller can also operate independently.
View specifications
SGCRX_V1
A single-sided overhead display for three production lines per transmitter. Each display presents four daily and four cumulative scrap-grade counts. Updated values flash temporarily, while an alarm remains active until acknowledged using the dedicated wired remote.
View specifications
ODI-2CH-RF
A wireless obstacle-detection and PLC interlock system for rail-mounted moving machinery. Two forward-facing sensors monitor the travel path, while separate obstacle and link-status relays provide alarm and movement-permission signals to the PLC.
View specificationsTell us your application, viewing distance and quantity.
