UTD-5CH-RF

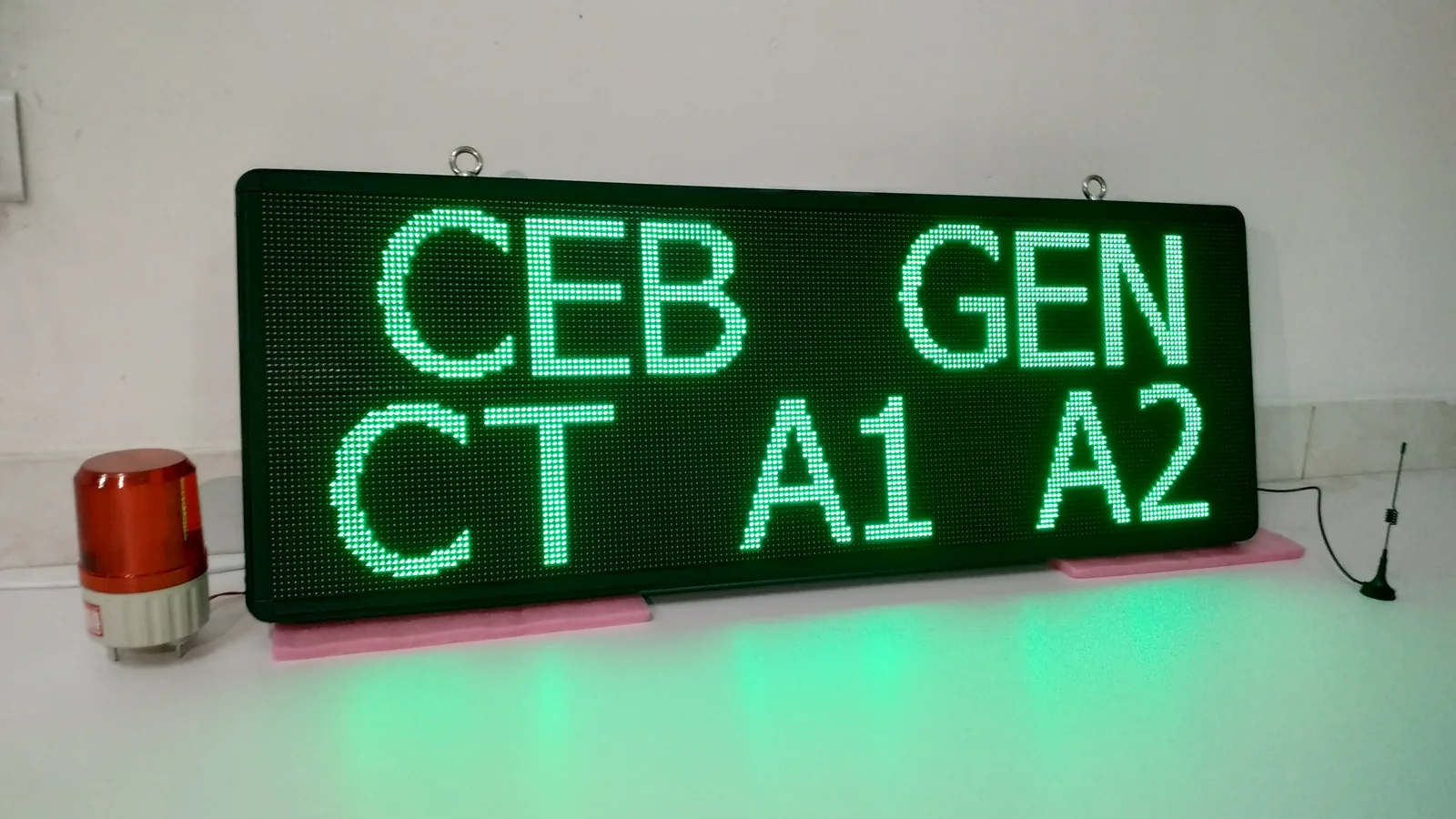

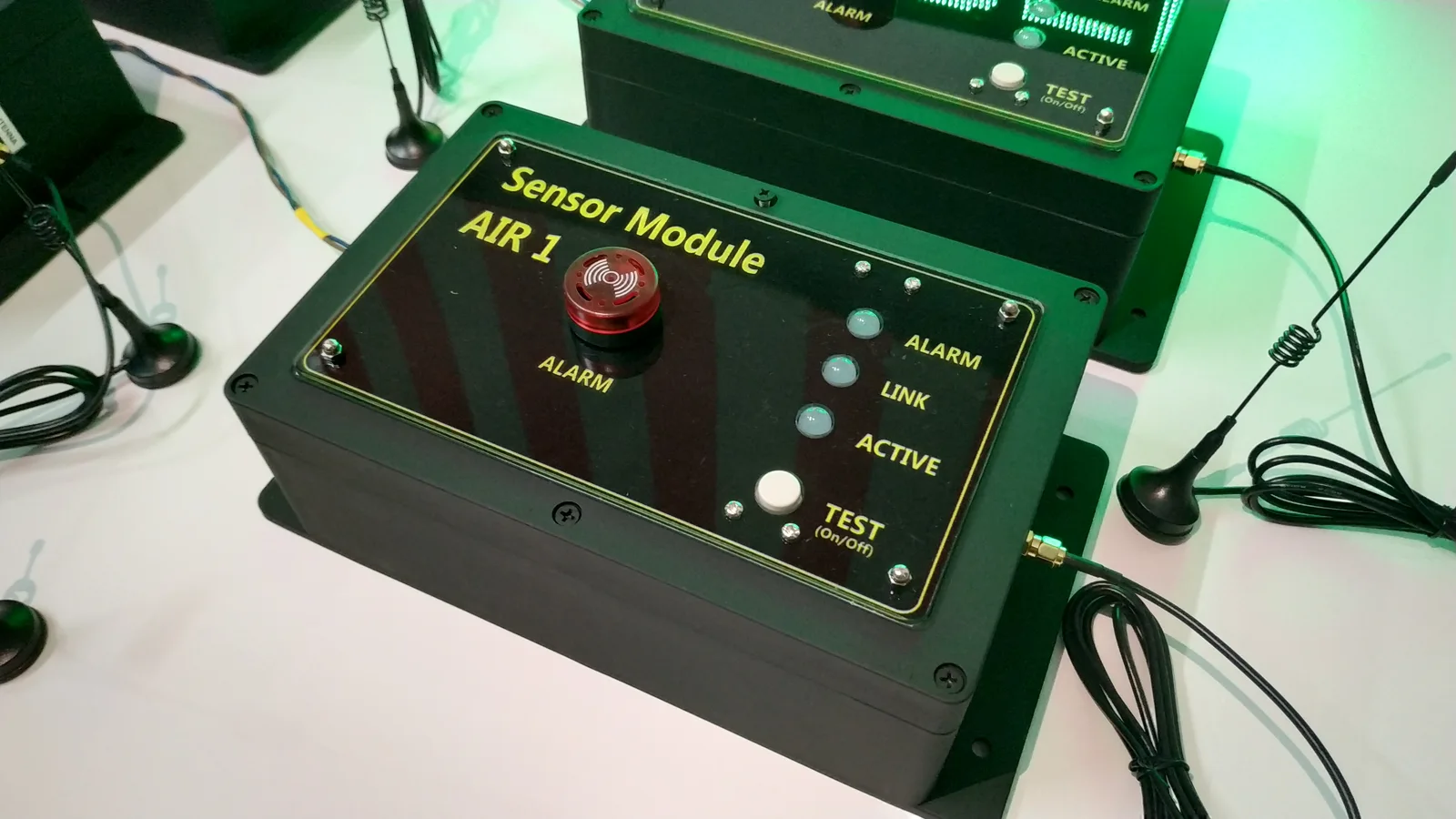

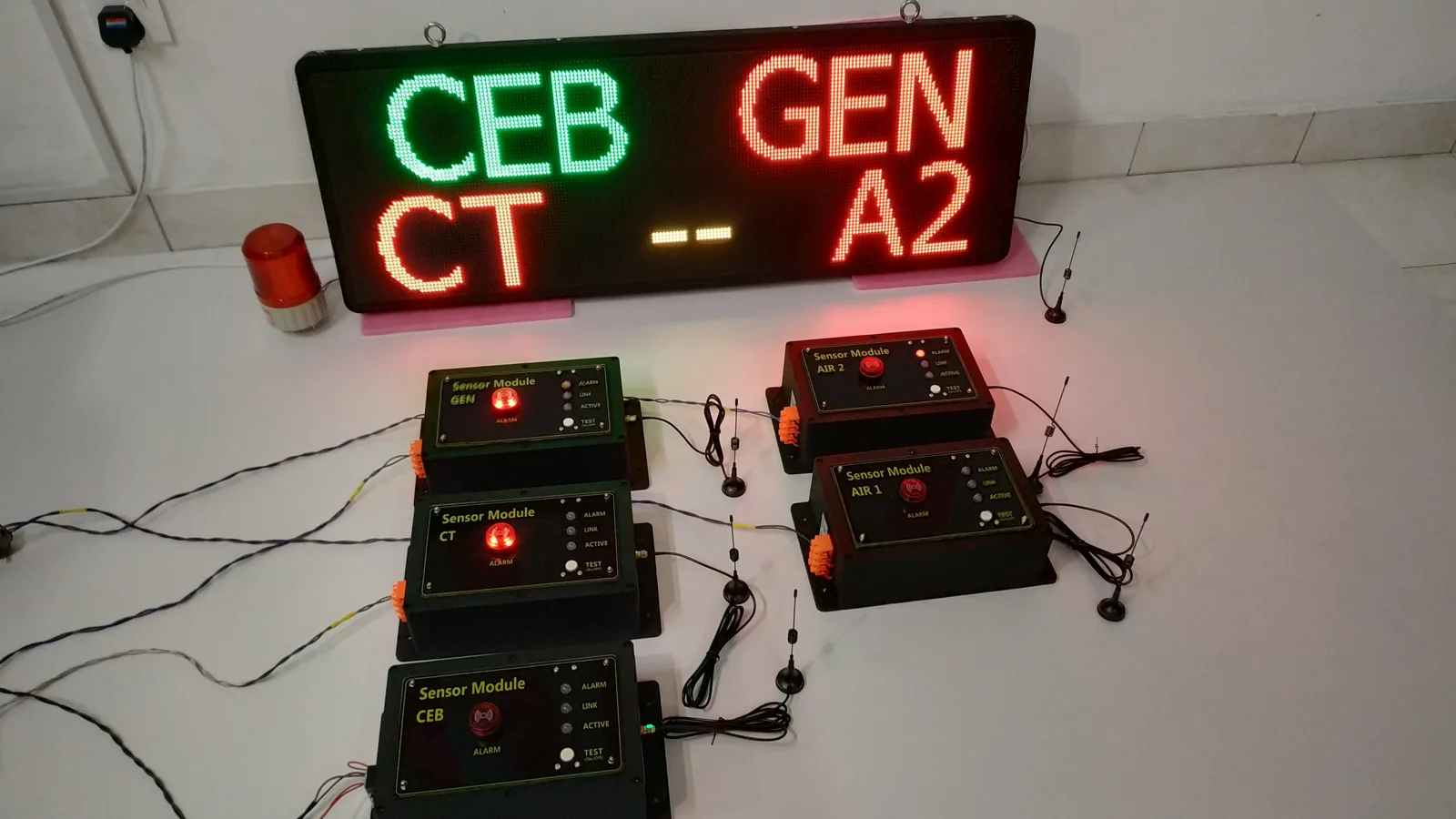

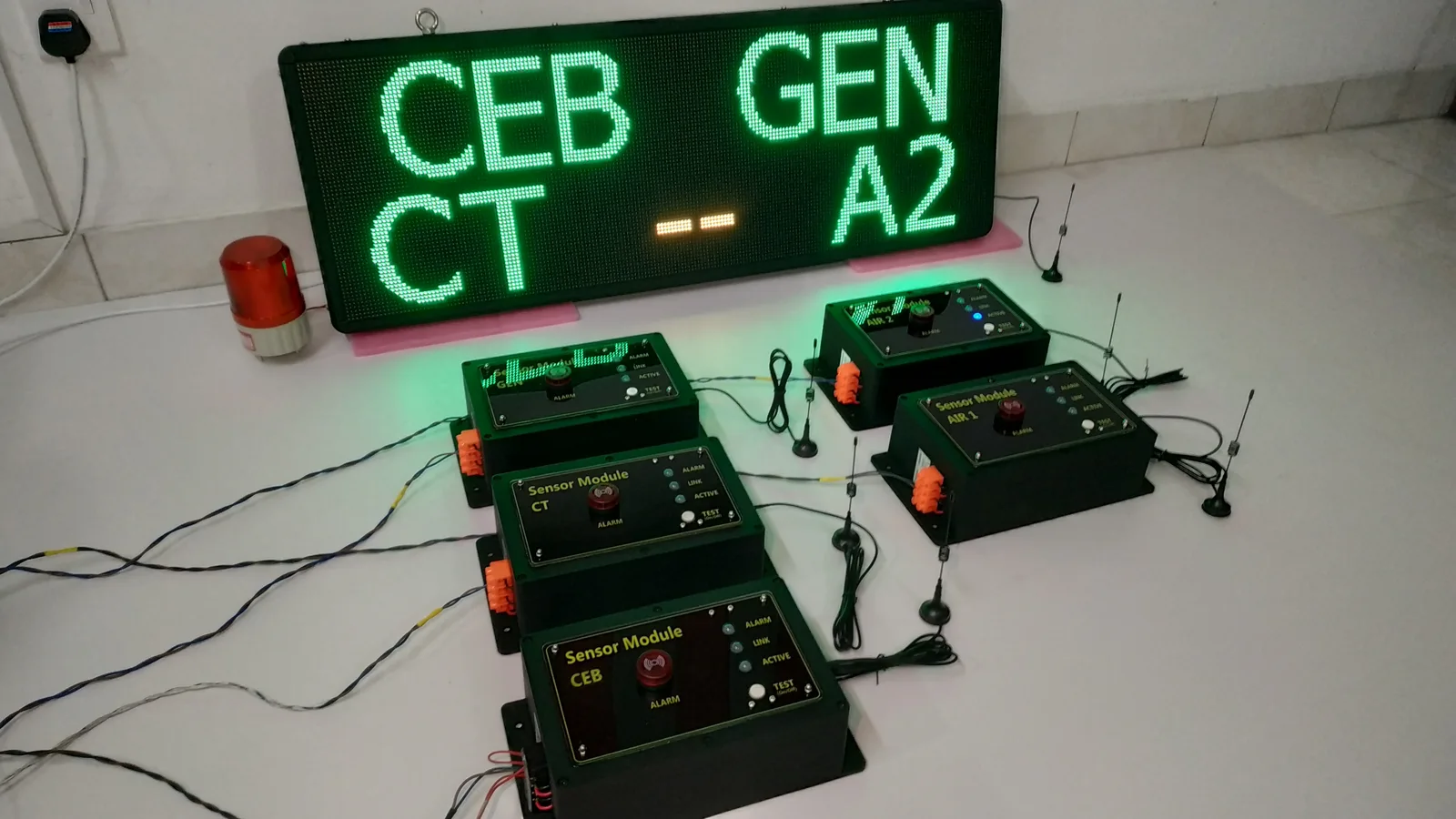

A wireless utility-monitoring system with a 256 × 64 tri-colour overhead display and five sensor modules. It simultaneously shows CEB power, generator, cooling tower and A1/A2 pump status, providing immediate warnings and individual relay outputs when a utility enters its programmed fault state.
Request a product quotation ↗Confirm quantity, colour and application for a formal quotation.
| Matrix Display | 256 × 64 pixels; red, green, amber |
|---|---|
| Sensor Loss | Amber dash; no alarm |
| Utility Channels | 5 standard; expandable to suit font size |
| Alarm & Outputs | 1-min siren/lamp; separate N/O contacts |
| Status Logic | Green normal; red fault; amber after 5 min |
| Viewing Distance | Up to 13.7 m (45 ft) |

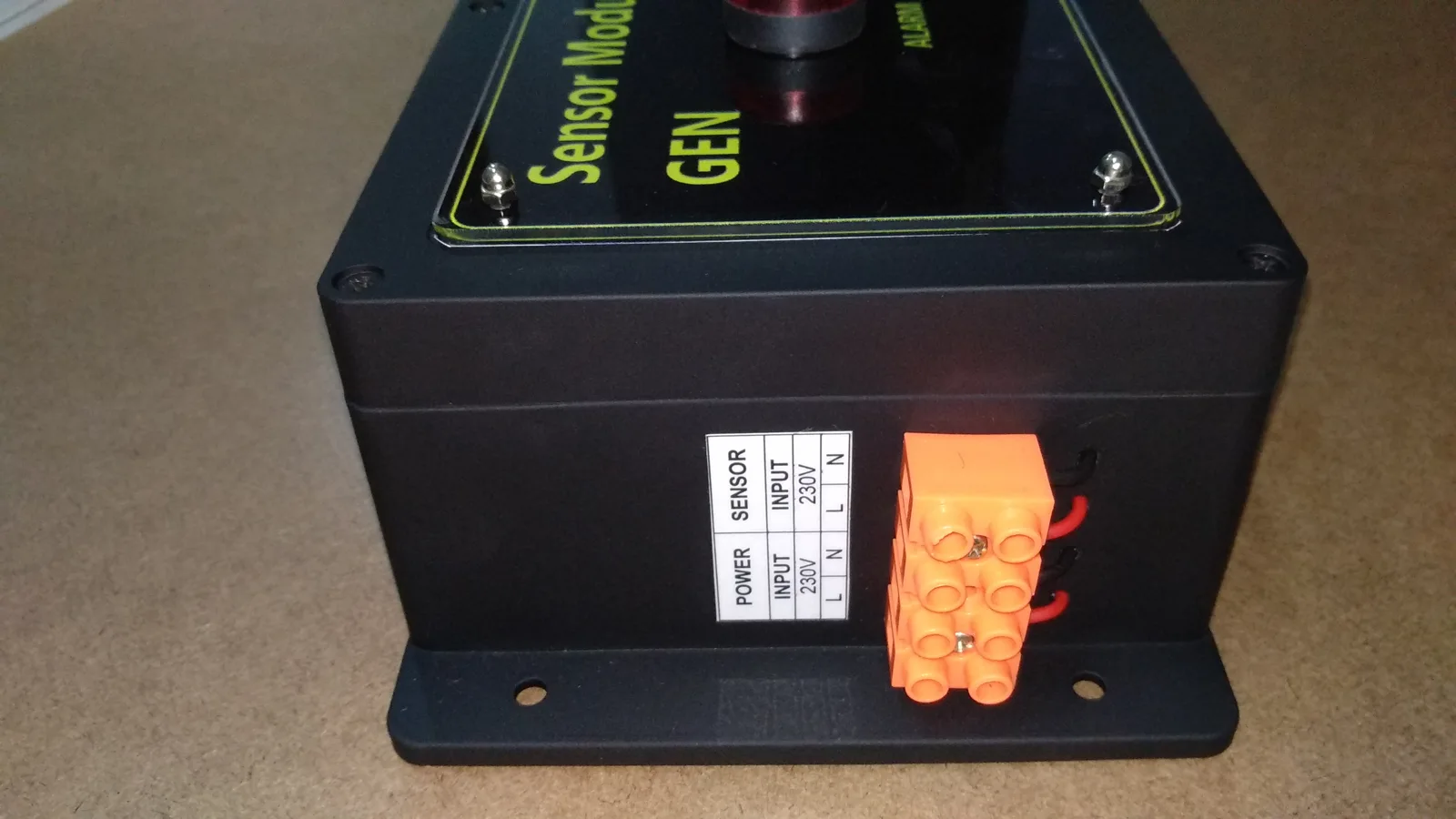

| Sensor Inputs | Isolated 230 V AC; sensor modules on UPS |
| Dimensions | 1219 × 305 × 50 mm |
UTD-5CH-RF
Specify the required colour and configuration when requesting a quotation. Weight is not provided in the catalogue where omitted above.
Monitoring power, generator, cooling tower and A1/A2 pump status.
SGCTX_V1
A desktop scrap-grading controller that maintains 12 daily and 12 cumulative counters. Operators manage all functions using a wireless QWERTY keyboard, while LoRa RF communication continuously updates the associated overhead display. The controller can also operate independently.
View specifications
SGCRX_V1
A single-sided overhead display for three production lines per transmitter. Each display presents four daily and four cumulative scrap-grade counts. Updated values flash temporarily, while an alarm remains active until acknowledged using the dedicated wired remote.
View specifications
ODI-2CH-RF
A wireless obstacle-detection and PLC interlock system for rail-mounted moving machinery. Two forward-facing sensors monitor the travel path, while separate obstacle and link-status relays provide alarm and movement-permission signals to the PLC.
View specificationsTell us your application, viewing distance and quantity.
